Ruger 10/22 Trigger Shim Kit

Custom made Stainless Steel Gun Shim Kits for the Ruger 10/22, 10/22 Magnum, SR-22, and Ruger Charger Pistol Trigger Assembly

Our Shims are Available in .002" through .009"
Order Any Kit on This Page and Request Custom Sizes via Email.


Our 10/22 Gun Shims and 10/22 TriggerShims Brand Kits are Custom Made here in Michigan Center, Michigan out of Alloy 302 Stainless Steel manufactured in the U.S.A.
Our Ruger 10/22 Trigger Shim Kits will remove side play found in stock and custom trigger assemblies, will stop the trigger from rubbing the trigger housing and smooth the trigger pull, correctly centering the Hammer, Disconnector, Sear and Trigger, possibly improving accuracy.
All of our Stainless Shim Kits can be ordered for both the Original 10 22 Metal Trigger Housing and the New 10 22 Plastic Trigger Housing Assembly with one piece Hammer/Bushing set.
TriggerShims Shim Kit Instructions are available on our Shim Kit Installation Instructions Page.
Your Purchase is Secure with our PayPal Checkout!

 Our Shim Kits also come in Combo Paks, see our
 10/22 Shim Combo Paks Page and Save $$

Ruger 10/22 Shim Kit installation instructions

Shims are installed at these locations
Shim Locations
CLICK TO ENLARGE
10/22 Trigger Shim Schematic
10/22 Trigger Shim Schematic
CLICK TO ENLARGE


Each 10/22 Shim Kit includes wooden installation tools and a 1/8" X 7/16" Cheater Pin.
We Cheerfully accept Cash, Money Order, and Credit Cards through PayPal!

****************

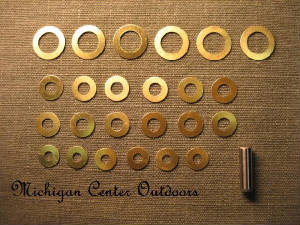

OUR 24 PIECE STAINLESS STEEL DELUXE SHIM KIT

Our Deluxe Stainless Steel Ruger 10/22 Trigger Shim Kit includes 24 Stainless Steel Shims.24 Piece Deluxe Shim Kit
Shim #1 are 10/22 Hammer Bushing Shims, 2 each in .002", .003", and .005" thickness.
Shim #2 are 10/22 Trigger and Sear Shims, 4 each in .002", .003", and .005" thickness.
Shim #3 are 10/22 Disconnector Shims, 2 each in .002", .003", and .005" thickness.

Our Deluxe Stainless Shim Kit will stop all side rubbing in the trigger assembly,
and give you a nice selection of shims  for a total
of .020" at at each shim location.
100% Satisfaction Guarantee!
"Cheater Pin" included to aid installation.
 Specify your Trigger Housing Style- Metal or Plastic/Universal

 Deluxe Stainless Shim Kit $22.00 Free Shipping


Trigger Housing

****************

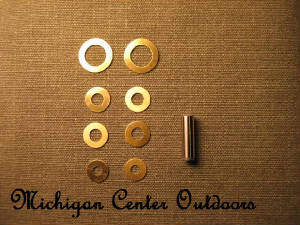

OUR 8 PIECE STAINLESS STEEL STANDARD SHIM KIT

Our Stainless Steel Ruger 10/22 Trigger Shim Kit includes 8 Stainless Shims.8 Piece Standard 10/22 Shim Kit
Shim #1 are 10/22 Hammer Bushing Shims, 2 each in .005" thickness.
Shim #2 are 10/22 Trigger and Sear Shims, 4 each in .005" thickness.
Shim #3 are 10/22 Disconnector Shims, 2 each in .005" thickness.
Our Stainless Shim Kit will stop all side rubbing in the trigger assembly,
and comes with a 100% Satisfaction Guarantee!
"Cheater Pin" included to aid installation.

 Specify your Trigger Housing Style - Metal or Plastic/Universal

  8 Pcs. Stainless Shim Kit $14.00 Free Shipping
       ON SALE LIMITED TIME $12.00

Trigger Housing

****************

Bulk Paks of Hammer, Trigger or Disconnector Shims are
Available in .002" through .009"
Order Below

10/22 Shims Bulk Paks
10/22 Shim Bulk Paks
Specify Thickness here:

****************


10/22 Cross Pin Shims
Tighten up a Loose Trigger Assembly
10/22 Cross Pin Shim
Our Cross Pin Shims will fit the Front Cross Pin that holds the Trigger Assembly in the Receiver.
By installing the Cross Pin Shim between the Receiver and Trigger Housing at the Front Cross Pin,
Side to Side play can be eliminated.
Available in any thickness-  .003", .004", .005", .006", .007", and Special Order .002" and  .009"
Specify thickness in box when ordering -OR- send e-mail with order listing required sizes.
Standard Assortments;
4 Pak- 2 X .003" 2 X .005"
8 Pak- 2 X .003" 2 X .004" 2 X .005" 2 X .006"

10/22 Cross Pin Shim
Specify Sizes

****************

We do not Export the Items Below

****************

Our Ruger 10/22 Oversize Trigger Pin Pak
Slightly Oversize - Better Fit10/22 Oversize Pin Pak
416 Stainless Steel - Made in the USA
Meets Military Specifications
My Trigger Pin set includes 1 each - 5/32" Hammer Pin, 1/8" Trigger Pin, and 3/32" Disconnector Pin.
All 3 pins are Precision Ground Slightly Oversize* as opposed to the slightly undersize pins supplied by Ruger.
Will fit 99% of all stock Ruger Trigger Assemblies with a tighter fit.
These pins are sourced only from one of the very best suppliers in the U.S. and come with my 100% Satisfaction Guarantee on both Quality and Fit.
Note: Some Aftermarket Trigger Parts with very close tolerances may require you to polish pin down to fit.
*These pins are .0001" to .0003" (Tenthousandths) over nominal sizes listed above.

3 Piece Pak includes 1 Hammer Pin (B19), 1 Trigger Pin (B21) and 1 Disconnector Pin (KE02800)
* Ruger Stock Numbers for Reference Only

 10/22 O.S. Pin Pak #3OSPP       $9.95       Free Shipping

Magazine Latch Pivot / Ejector Pin B35 10/22 B35 Pins

Slightly Oversize - Better Fit
416 Stainless Steel - Made in the USA
Precision Ground Slightly Oversize* as opposed to the slightly undersize pins supplied by Ruger.
Will fit 99% of all stock Ruger Trigger Assemblies with a tighter fit.
This pin is a nominal 1/8" and 9/10 inch in length
Sold in a set of Two Pins
 10/22 B35 O.S. Pin Pak #B35PP       $7.95       Free Shipping



Ruger 10/22 5 Piece Oversize Pin Pak10/22 5 Pin Pak
5 Piece Pak includes 1 Hammer Pin (B19), 1 Trigger Pin (B21) and 1 Disconnector Pin (KE02800)
and 2 (B35) Magazine Latch Pivot / Ejector Pins

 10/22 5 Piece O.S. Pin Pak #5OSPP     $14.95   Free Shipping

Ruger 10/22 Oversize Cross Pin
Slightly Oversize - Better Fit
416 Stainless Steel - Made in the USA
Meets Military Specifications

My Cross Pin set includes 2 (two) - 3/16" Cross Pins. (.1875")
These pins are Precision Ground (very) Slightly Oversize* as opposed to the slightly undersize pins supplied by Ruger.

*These pins are .0001" to .0003" (ten-thousandths) over nominal sizes listed above.
2 Piece Cross Pin Pak Ruger # B5*
* Ruger Stock Numbers for Reference Only

 10/22 Cross Pin Pak #B5CPP       $9.95       Free USA Shipping



The pins included in your Ruger Trigger Assembly serve the purpose, but leave something to be desired when upgrading your Trigger Assembly for best performance. Not exactly round and somewhat undersized, our Ground Stainless Steel pins are an easy-to-install improvement.
The Stock Ruger Pins in my Rifle were anywhere from .0002" to .002" undersize and out-of-round with a less than ideal finish.
These pins are approximately .0003" over nominal size and ground perfectly round.
By installing the Ground Stainless Oversize Pin Pak in my 10/22T which has a Power Custom Hammer and Adjustable Sear kit I measured over 1/2 pound additional improvement in Trigger Pull.
Your Satisfaction is Guaranteed 100%

Metal or Polymer (Plastic) Trigger Housing?
We manufacture Hammer Shims to fit both the Metal and New Polymer or "Plastic" Trigger Housings.
Rugers change to the New Polymer Trigger Housing brought a change to the Hammer Too. (Metal Injection Molded or MIM)
Most All Plastic Trigger Housings have a Hammer with Bushings Built-in, (Integral Bushings) (MIM)
To further confuse things, at one point Ruger Temporarily changed back to the Original Hammer with separate bushings.
The only Difference is the Hammer construction, the Original Metal Trigger Housings have a Hammer with 2 Hammer Bushings, (B-43) while Most All of the New Polymer Housings have Bushings built-in to the Hammer, (MIM) but a few have the original design.
When installing shims, the Hammer Shims for Metal Housing Trigger Assemblies goes between the Hammer and the B-43 Hammer Bushing.
On the Plastic Housing set with Hammers that have Integral Bushings, the Shim has to go outside the Bushing on the B-19 Pin.
On the Plastic Housing set with Hammers that have Separate Bushings, the Shim goes between the Hammer and the B-43 Hammer Bushing.
Our Plastic Housing Shim Kit is really a Universal Set in that it can be used on Any Style Trigger Assembly because the Shim Washer goes Outside the Bushing.

Old Style, (Metal Trigger Housing) Hammer Shim fits between the B-43 Bushings and Hammer
New Style, (Plastic Trigger Housing) Hammer Shim fits between the 1 Piece Hammer/Bushing Assembly and the Plastic Housing.

Old Style, (Metal Trigger Housing) Hammer Shim is .221" X .345"
New Style, (Plastic Trigger Housing) Hammer Shim is .156" X .310"

Please use the drop down menu at the "ADD TO CART" Button to choose the proper shim kit to match your Housing or Hammmer Style


RUGER 10/22 Gun Guide

Ruger Complete Guide for 10/22 Rifle
COMPLETE-Ruger-10-22

The only current printed manual that includes information on  ALL models from 1964 ~ 2005.
Includes all serial numbers and manufacture dates for all models from 1964 ~ 2004!
Easy to use -- Comb binding lies open and flat on your work surface.
Parts Diagram Drawings, Field Stripping and Full Disassembly Instructions including Hammer and Trigger Assembly, Very Helpful when installing a Trigger Shim Kit.
56 pages & 66 high-resolution grayscale images.
Cardstock cover. Bright white paper.
Makes a Very Nice Gift, No 10/22 Owner Should be Without This Guide!



 Ruger 10/22 Gun Guide
$12.50 ea plus $2.00 Shipping

Generated image




SINGLE  GUN SHIMS AVAILABLE  FOR CUSTOM ORDERS

Single Style Gun Shims are available for custom orders from our inventory.
All shim styles are available in Thicknesses from 002" through 009"
Price includes shipping.  Minimum Order 2 Pak
Use the PayPal Cart to add this item, and update cart to quantity desired.
Use comments or e-mail to indicate the size & style you require.


 Stainless Shims include Free Shipping

Custom Shim Pak
Specify Thickness and Type

Gunsmith Shim Kits Available, Min. Order 100 Shims, 4- 24 piece kits or 12- 8 piece kits.
Orders Will Be Shipped in Bulk Packaging,
Your choice of sizes/material.
E-mail for details and order information
Lance@MichiganCenterOutdoors.com

Tuffer Buffer 10/22 Recoil Buffer
Tuffer Buffer 10/22 Recoil Buffer
Click to Enlarge




Tuffer Buffer Recoil Buffer

I have used a recoil buffer for years, and I can say this is one upgrade you  should not be without. Tuffer Buffer brand Recoil Buffers are made in Canada, and were designed specifically for the Ruger 10/22 and 10/22 Magnum. Tuffer Buffer replaces the Bolt Stop Pin (B46 on Ruger schematic) When the gun is fired, the bolt moves rearward and contacts the bolt stop pin. By replacing the factory steel stop pin with a Polyurethane Tuffer Buffer, the bolt stop impact is significantly reduced resulting in less noise but more importantly far less strain on the receiver and bolt due to metal to metal contact.

Tested to withstand over 100,000 cycles, Tuffer Buffer comes with an Unconditional
Lifetime Guarantee, and my Personal 100% Satisfaction Guarantee.


 Tuffer Buffer recoil buffer  $9.95 Free Shipping
 2 Pack Tuffer Buffers        $15.00 Free Shipping
5 Pack Tuffer Buffers         $30.00 Free Shipping

Quantity

10/22 Recoil Buffer Installation Instructions
