Winchester Rifle Trigger, Hammer, Lever & Bolt Shims

Note: Models made 1978 and up use a .245" bushing in the Hammer, and use a larger Hammer Shim ~ .251" X .419"
If you have a 1978 and up, please add in comments box and we will give you the proper size Hammer Shims

Winchester Model 94 Disassembly at CastBullet.com

Lance, I want to think you for the shims. I put a larger loop on a 1966 Winchester 94 because I have large hands. I did not like the slop in the lever. Your shims made a large improvement for a small investment. Greg in Alabama

Win~75BS

Winchester Model 69A ~ 75S Bolt Shims

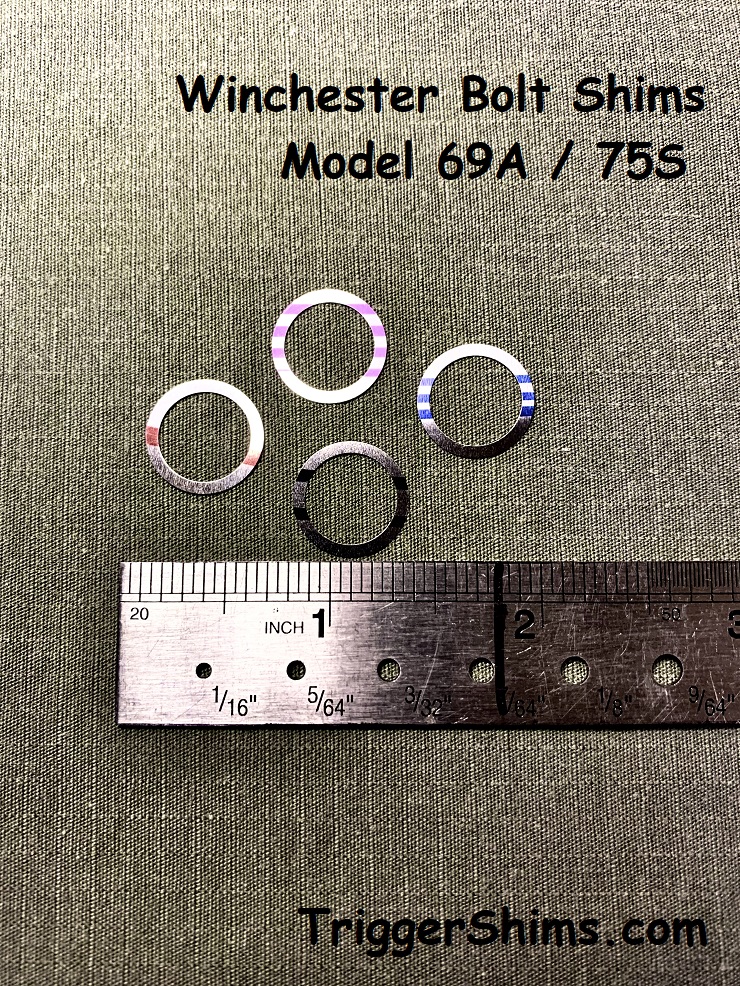

Winchester Model 69A and 75S Bolt Shims

Bolt Shims for 1950’s Vintage Winchester 75 Sporter
made between 1938-1958

Also Fits Winchester 69A
made between 1935 and 1963

Shim Size .450" X .565"

How does a Bolt Shim work?
The actual head space is in the recessed face of the bolt. Shimming between the two bolt halves ensures the bolt is up tight against the breech. If the bolt is not up tight against the breech it tends to cause misfires and light strikes.

When the bolt action rifle’s bolt locking surfaces become worn increases in the headspace can cause light firing pin strikes, poor ignition (misfires), looseness of the bolt, and loss of accuracy. Excessive headspace causes the bolt to feel loose.
Also Used for Adjusting after Re-Barreling

If you are getting misfires and light strikes shimming the bolt is a good way to solve it.

TriggerShims Bolt Shims come in the following assortments, Buy Multiple Paks and Save $

4 Pak Assortment - $11 includes 1 each .002", .003", .004" and .005"
5 Pak Assortment - $14 includes 1 each .0015", .002", .003", .004" and .005"
Use Drop-Down V and Buy 2X Double or 3X Triple Pak and Save $
2 Shim Pak - $7 *Specify your size in Box Below .0015" or .002" - .007"
You can Request Your Own Assortment Thicknesses In Box Below
Includes Free ~ First Class Mail Economy Shipping

TriggerShims Winchester 75S Bolt Shim

Item # Win~75BS 450 X 565

Price includes Free Economy Shipping U.S. and International

Win~52BS

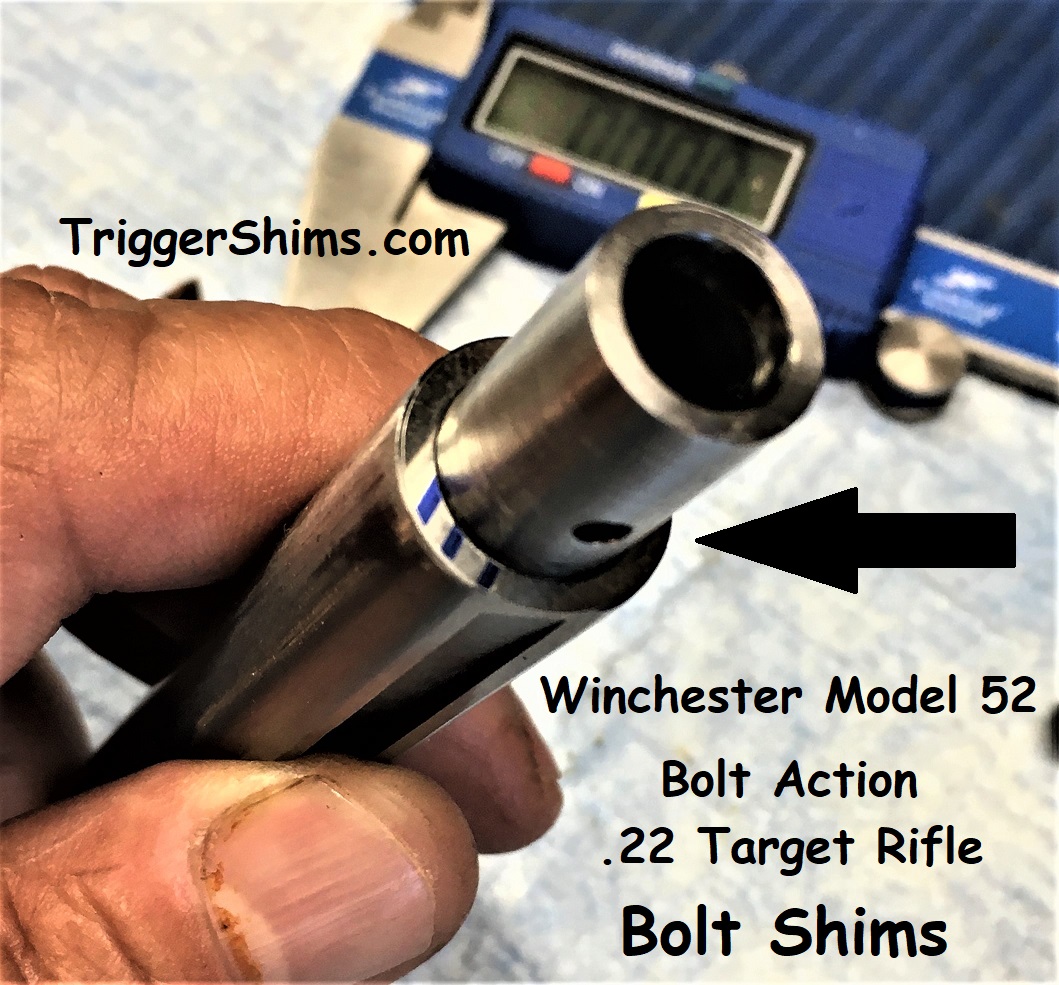

Winchester Model 52 Target Rifle Bolt Shims

Winchester Model 52 and Model 43 .22-Caliber Bolt Shims

SUHL East German MODEL 150 .22 Target Rifle

Bolt Shims for Winchester Model 52 Target Sporter made between 1920-1980

Also Fits Winchester Model 43

Also Fits SUHL East German MODEL 150 .22 Target Rifle

Also Fits Winchester Variants ~ Sporting Model and International Match

Shim Size .511" X .648"

If you are getting misfires and light strikes or are chasing accuracy, shimming the bolt may be a good way to solve it.

TriggerShims Bolt Shims come in the following assortments, Buy Multiple Paks and Save $

4 Pak Assortment - $11 includes 1 each .002", .003", .004" and .005"
5 Pak Assortment - $14 includes 1 each .0015", .002", .003", .004" and .005"
Use Drop-Down V and Buy 2X Double or 3X Triple Pak and Save $
2 Shim Pak - $7 *Specify your size in Box Below .0015" or .002" - .007"
You can Request Your Own Assortment Thicknesses In Box Below
Includes Free ~ First Class Mail Economy Shipping

TriggerShims Winchester Model 52 Target Bolt Shim

Fits Winchester 52 / 43 and Suhl 150

Item# Win~52BS ~ (.511" X .648")

Price includes Free Economy Shipping U.S. and International

Bolt Shim Instructions

LANCE'S TECH TIP:
Rimfire Bolt Shim Installation
~ A General Guide ~

Rimmed Cartridges use the thickness of the cartridge rim for head-spacing .22 Rimfires Headspace on the Case Rim, and the actual head space is in the recessed face of the bolt.
Shimming between the two bolt halves ensures the bolt is up gently tight against the breech.
You can use our color coded numbered shims like a gauge to find the when the bolt face touches the barrel breech face, and then calculate where you want to be with your bolt headspace depth and rim thickness measurements.
I cannot tell you which shim best works with your rifle, you decide that yourself by fitting and feel and by shooting.
Installing Bolt Shims requires fitting by hand, and checking with the Bolt installed in the Rifle, and Locked Down - you do not measure with the Bolt out of the Rifle.
To establish the Bolt/Breech fit, shims are installed and fitted on an empty chamber.
If possible it may give you a better feel if you leave the extractors off some rifles while fitting shims.
Start with a 4 or 5 Pak of shims, install the .0015" or .002" thinnest shim and see how your bolt closes, if it seems to close as normal, then continue to install each thicker shim until the bolt starts to close harder than normal. At the point where your bolt begins to close hard, that was the amount of slack that was in your bolt, measured by whatever shim or shims combined were needed to bring the bolt up tight to the breech. Now it is best to remove that shim, and step back one number, example would be if a .005" Red shim causes the bolt handle to close harder than normal, then take it out and install a .004" Purple.
If you have to force or put undue stress on your bolt to close it, you should reduce the number of shims. You will generally only use 1 of the 4 or 5 shims in the package, but you can stack shims together if needed. When you have the correct shim installed, your bolt should close normally or just (ever-so) slightly tighter than normal. Put a very small drop of oil on the shim. Now you can go to the range and with the barrel pointed in a safe direction, once again check fit with your favorite ammo.
Due to variations in rim thickness, you may have to reduce the thickness of shims, remember you have already removed all the excess headspace from the bolt/breech, so now the only thing to do is remove thickness (shims) if / as needed to get to your sweet spot or required headspace for the rim thickness of your favorite cartridge.
For Longest Shim Life use a drop of oil or a (very small amount of) grease on your shim.
If you have to force or put undue stress on your bolt to close it, you should reduce the number of shims. A minimum of clearance should be maintained, do not put undue stress on the bolt by shimming too tightly as it is unnecessary!
At no time do you want to force the bolt to close, did I explain that clearly?
Bolt Shims have in many instances cured light strikes. Will they help with Accuracy? Don't take my word for it, Read our the Customer Reviews or ask our Customers
Simply Chambering More Consistently Yields More Consistent Results.
Your Satisfaction is Guaranteed, if you feel you receive no benefit you may send your shims back for a Full Refund.

Rimfire Rifle Bolt Shim Index

BoltShim-INDEX

Expanded Selection of Rimfire Rifle Bolt Shims for 2023

New for 2023
~ Barrel Shims ~

NOTE: email me to be put on a list to be notified when new Bolt Shims are ready ~ Send Lance an Email ~

Win~MIR/L

Winchester Miroku 1873 Shims

Winchester Miroku 1873 Finger Lever Shims

Winchester (Miroku) 1873 Finger Lever Shims

(.198" X .499") Available .002" through .010"

Item # Win~MIR/L - Price includes Free Economy Shipping U.S. and International

Win~MIR/H

Winchester Miroku 1873 Shims

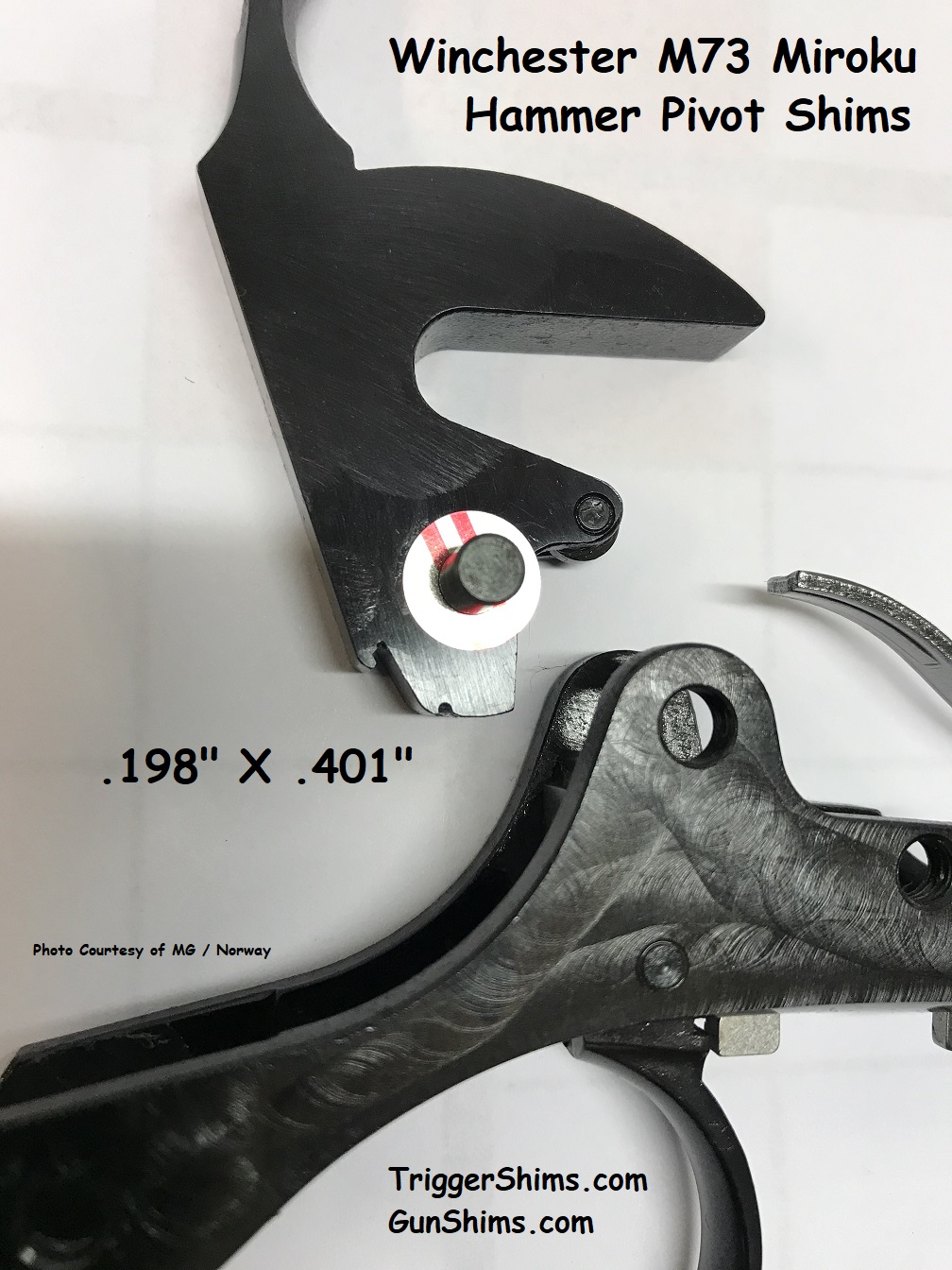

Winchester Miroku 1873 Hammer Shims
