American Made Gun Shims for Remington

God Bless America

Remington Rifles
and Shotguns
Remington Rimfire Bolt Shims

Also see our Uberti Remington Page


~ Quick Links to Items on This Page ~

Remington 40X Bolt Shims
Remington 5 Bolt Shims
Remington 540X Bolt Shims
Remington 504T Bolt Shims
Remington 513T Bolt Shims
TECH TIP: Bolt Shim Instructions ~ A General Guide
TECH TIP VIDEO: REM 40X Bolt Shims

Remington Shotgun Shims and Parts
Remington Rifle Gun Springs

Rem40X

Remington Model 40X Bolt Shims

Remington 40X

Remington Model 40X Small-Bore Target Rifle Bolt Shims

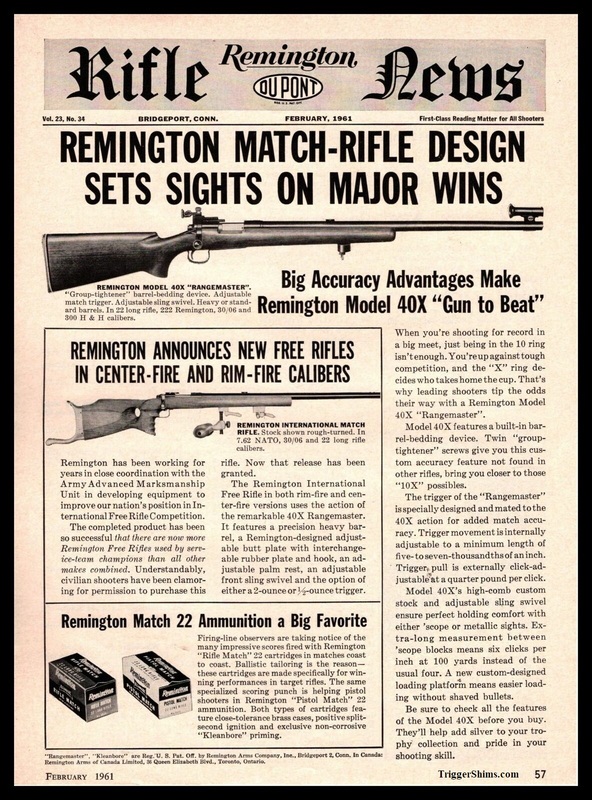

The Remington Model 40X Small-Bore Target Rifle was introduced in 1955 and chambered for the .22 Caliber Long Rifle Cartridge

Bolt Shims for 1950’s Vintage Remington 40X Target Rifles that were also sold at CMP up through 2010+

Remington 40X

Also may fit other models, check your bolt size to confirm
Rem 40X Bolt Shim ~ .570" X .690"

How does a Bolt Shim work?
The actual head space is in the recessed face of the bolt. Shimming between the two bolt halves ensures the bolt is up tight against the breech. If the bolt is not up tight against the breech it tends to cause misfires and light strikes.

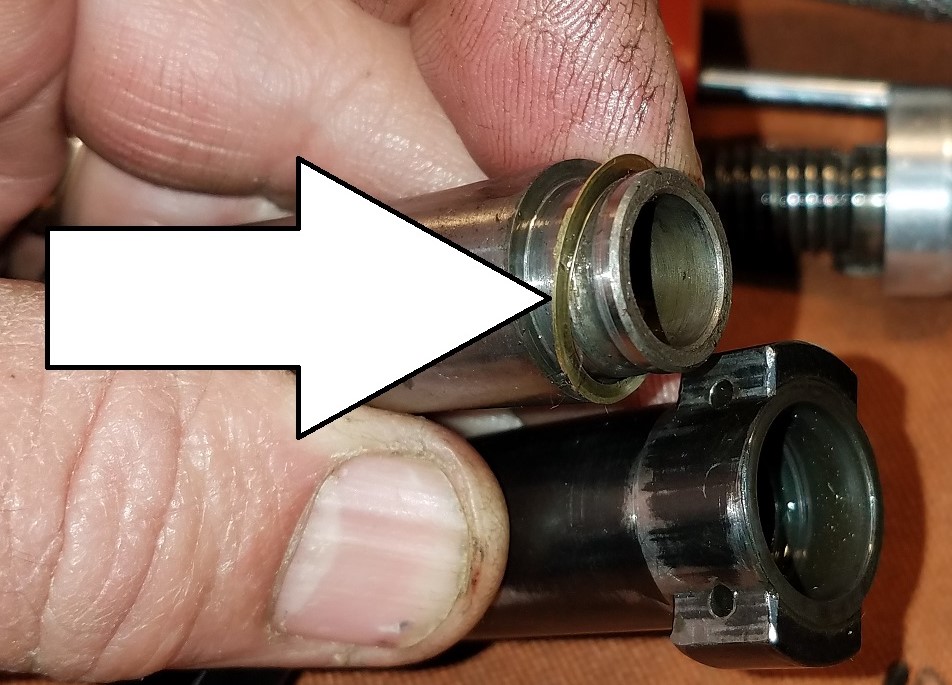

Remington 40X Close-up

When the bolt action rifle’s bolt locking surfaces become worn increases in the headspace can cause light firing pin strikes, poor ignition (misfires), looseness of the bolt, and loss of accuracy. Excessive headspace causes the bolt to feel loose.

When searching for Accuracy, ~or~ If you are getting misfires and light strikes shimming the bolt is a good way to solve it.

Remington 40X Bolt Shim 4 Pak include;
1 X .002" - 1 x .003" - 1 X .004" and 1 X .005"

Total of .014" potential adjustment so you will be assured
to have more than needed to adjust one rifle.

NOTE: Be Advised this bolt may have taper pins that must be pressed out in the right direction.
I have found they also have straight pins that are 5/64" Diameter

~ Click Here for Rem 40XB Parts and Diagram ~

TriggerShims Bolt Shims come in the following assortments, Buy Multiple Paks and Save $

NEW 5 Piece Kits ~ Include .0015" Shims for Finer Adjustment

  • 4 Pak Assortment - $11 includes 1 each .002", .003", .004" and .005"
  • 5 Pak Assortment - $14 includes 1 each .0015", .002", .003", .004" and .005"
  • Use Drop-Down V and Buy 2X Double or 3X Triple Pak and Save $
  • 2 Shim Pak - $7.50  *Specify your size in Box Below .0015" or .002" - .007"
  • You can Request Your Own Assortment Thicknesses In Box Below
  • Includes Free ~ First Class Mail Economy Shipping

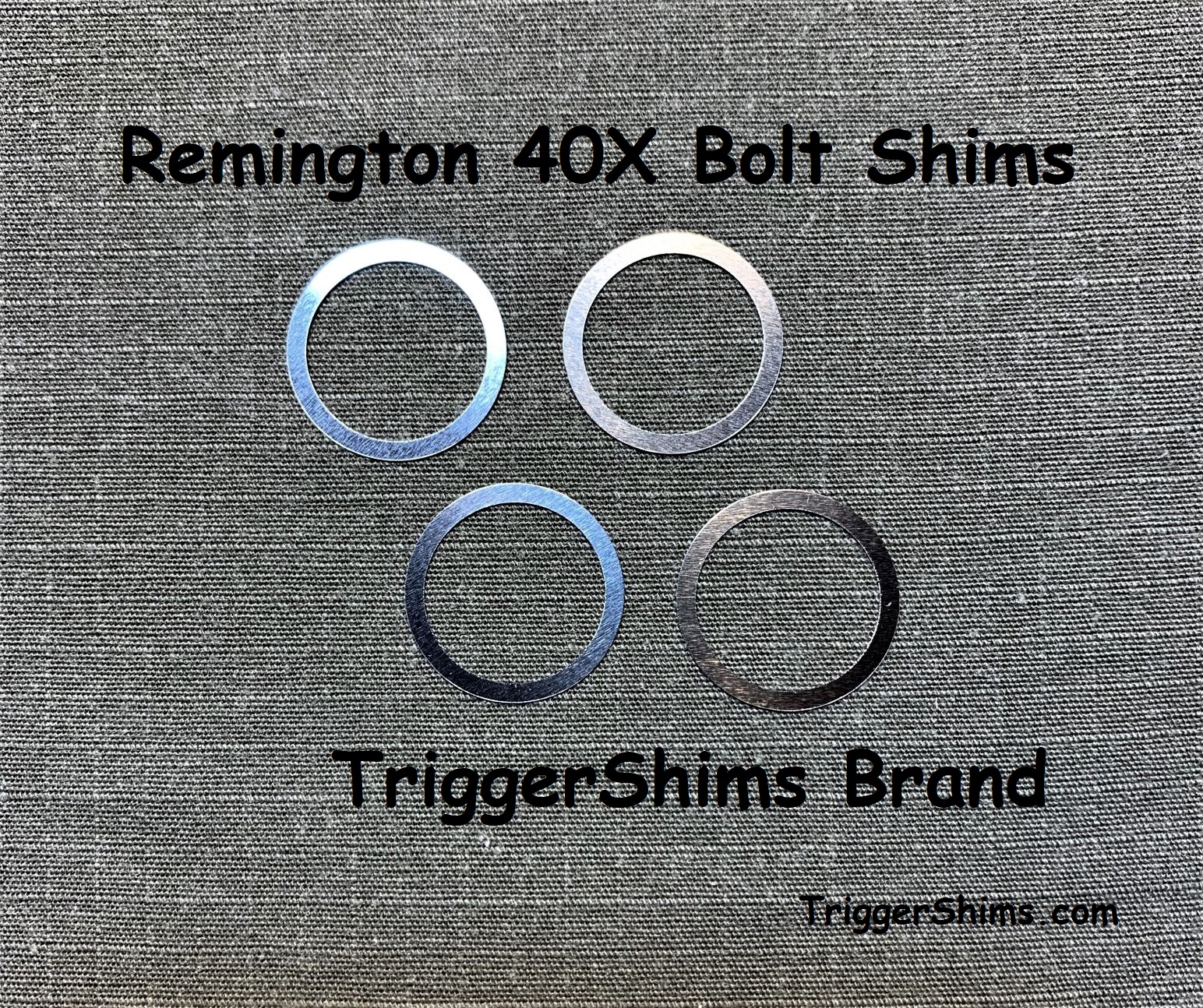

Remington 40X Shims

.570" X .690" Remington 40X Bolt Shims

Item # SS-REM40X/BS

Click Box to Choose Different Quantities

Remington 40X Bolt Shim Pak 570 X 690
Choose Assortment Shim Pak
Enter Choice / Request Below

👉Link To: ADD USPS TRACKING UPGRADE with SHIPPING PROTECTION

👉Link To: INTERNATIONAL TERMS / POSTAGE $1

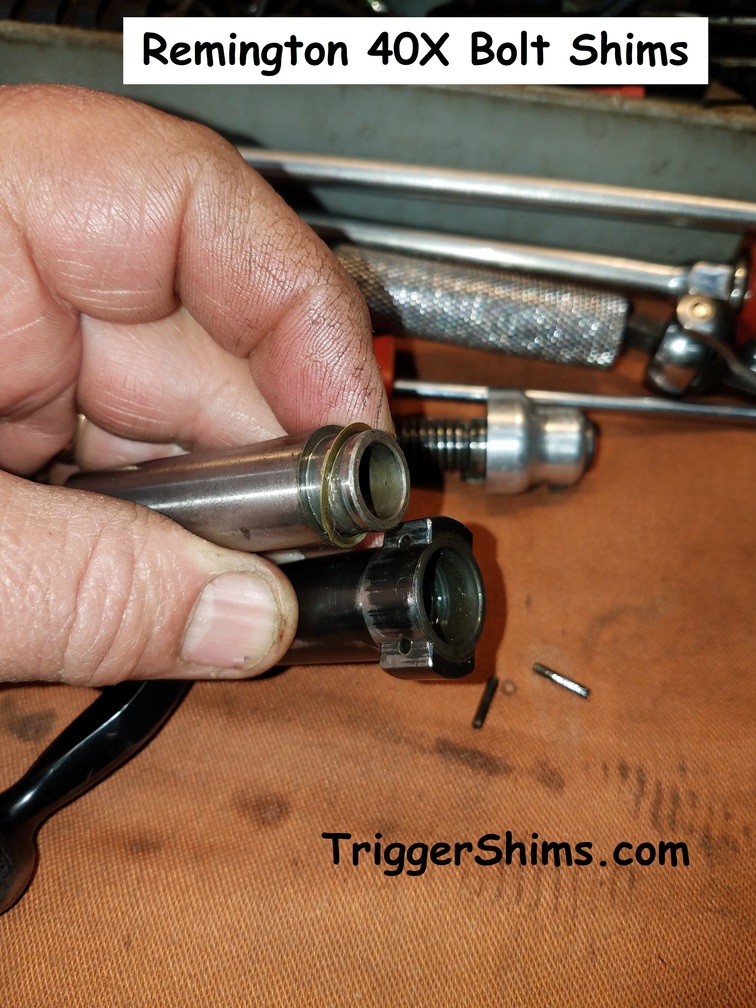

Special Thanks to Tim for Field-Testing and Photo's


TECH TIP VIDEO: Remington 40XB with TriggerShims.com Bolt Shims

TriggerShims Logo

Rem540X

Remington Model 540X Bolt Shims

Remington Model 540X Small-Bore Target Rifle Bolt Shims
Also Fits Remington 541T

Fits all 540 / 541 Series

Should Also Fit Remington 580 581 582

TriggerShims Bolt Shims come in the following assortments, Buy Multiple Paks and Save $

NEW 5 Piece Kits ~ Include .0015" Shims for Finer Adjustment

  • 4 Pak Assortment - $11 includes 1 each .002", .003", .004" and .005"
  • 5 Pak Assortment - $14 includes 1 each .0015", .002", .003", .004" and .005"
  • Use Drop-Down V and Buy 2X Double or 3X Triple Pak and Save $
  • 2 Shim Pak - $7.50  *Specify your size in Box Below .0015" or .002" - .007"
  • You can Request Your Own Assortment Thicknesses In Box Below
  • Includes Free ~ First Class Mail Economy Shipping

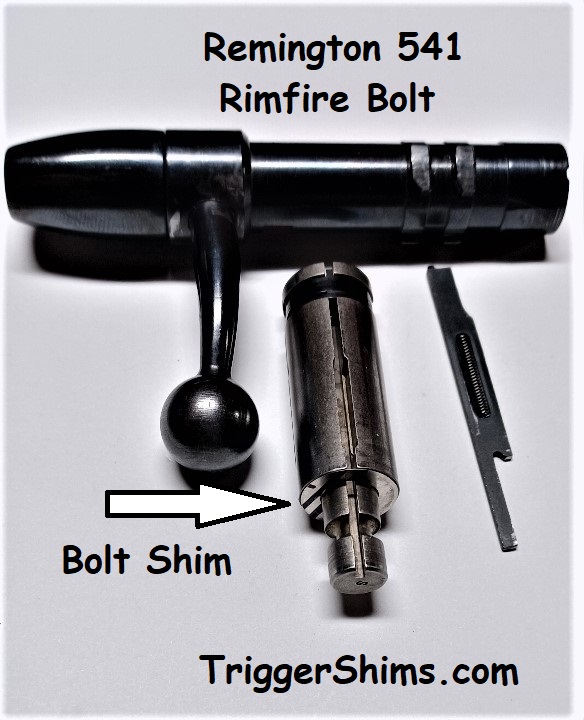

Remington 541

.357 X .595 Remington 540X Bolt Shims

Item # SS-REM540X/BS

Click Box to Choose Different Quantities

Remington 540X Bolt Shim Pak 357 X 595
Choose Assortment Shim Pak
Enter Choice / Request Below

👉Link To: ADD USPS TRACKING UPGRADE with SHIPPING PROTECTION

👉Link To: INTERNATIONAL TERMS / POSTAGE $1

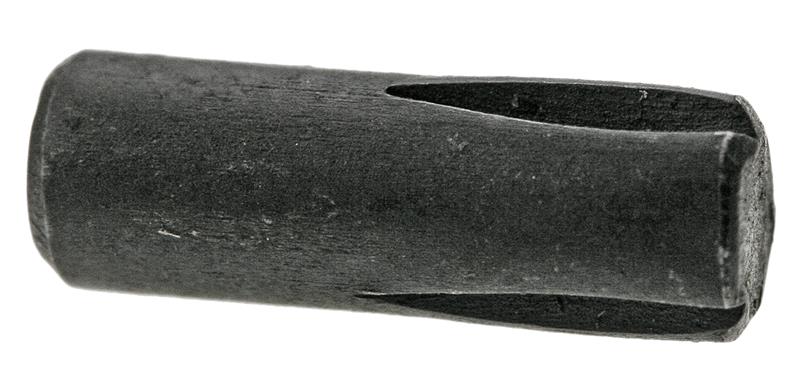

Remington 541T Bolt Pin

The Bolt Assembly Pin is KNURLED on one end, and would require great care to disassemble. After disassembly, you would want to locate a split pin available from a hardware store, cut to the correct length and sanded down on the OD so it just fits with hand pressure for shim testing.
Replacement Bolt Assembly Pin Pictured Product # 707620C available at Numrich Gun Parts Corp



Rem504T

Remington Model 504T Bolt Shims

Remington Model 504 and 504T
Small-Bore Target Rifle Bolt Shims

TriggerShims Bolt Shims come in the following assortments, Buy Multiple Paks and Save $

NEW 5 Piece Kits ~ Include .0015" Shims for Finer Adjustment

  • 4 Pak Assortment - $11 includes 1 each .002", .003", .004" and .005"
  • 5 Pak Assortment - $14 includes 1 each .0015", .002", .003", .004" and .005"
  • Use Drop-Down V and Buy 2X Double or 3X Triple Pak and Save $
  • 2 Shim Pak - $7.50  *Specify your size in Box Below .0015" or .002" - .007"
  • You can Request Your Own Assortment Thicknesses In Box Below
  • Includes Free ~ First Class Mail Economy Shipping

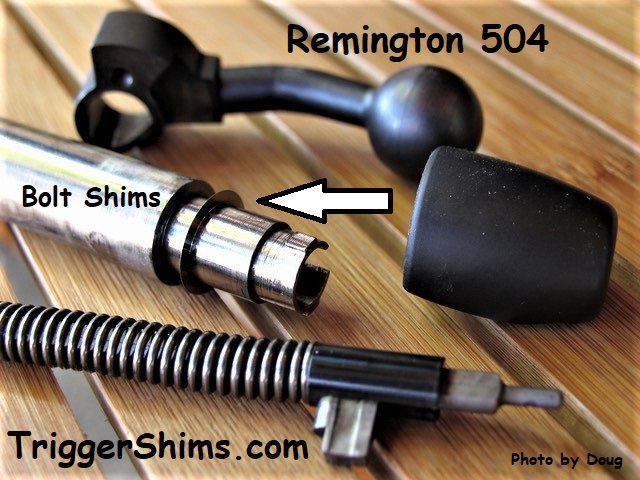

Remington 504

.450 X .595 Remington 504T Bolt Shims

Item # SS-REM504T/BS

Click Box to Choose Different Quantities

Remington 504T Bolt Shim Pak 450 X 595
Choose Assortment Shim Pak
Enter Choice / Request Below

👉Link To: ADD USPS TRACKING UPGRADE with SHIPPING PROTECTION

👉Link To: INTERNATIONAL TERMS / POSTAGE $1


Rem513T

Remington Model 513T Bolt Shims

Remington Model 513 and 513T
Remington 521 and 521T
Small-Bore Target Rifle Bolt Shims

Grandpa's Notebook: Customer Tech Tip Video


TriggerShims Bolt Shims come in the following assortments, Buy Multiple Paks and Save $

NEW 5 Piece Kits ~ Include .0015" Shims for Finer Adjustment

  • 4 Pak Assortment - $11 includes 1 each .002", .003", .004" and .005"
  • 5 Pak Assortment - $14 includes 1 each .0015", .002", .003", .004" and .005"
  • Use Drop-Down V and Buy 2X Double or 3X Triple Pak and Save $
  • 2 Shim Pak - $7.50  *Specify your size in Box Below .0015" or .002" - .007"
  • You can Request Your Own Assortment Thicknesses In Box Below
  • Includes Free ~ First Class Mail Economy Shipping

.480 X .570 Remington 513T Bolt Shims

Item # SS-REM513T/BS

Click Box to Choose Different Quantities

Remington 513T Bolt Shim Pak 480 X 570
Choose Assortment Shim Pak
Enter Choice / Request Below

👉Link To: ADD USPS TRACKING UPGRADE with SHIPPING PROTECTION

👉Link To: INTERNATIONAL TERMS / POSTAGE $1

Thanks TriggerShims Field Tester Todd Moody for his help on this shim


Rem5

Remington Model 5 Bolt Shims

Remington Model 5
.22 Rifle Bolt Shims

Remington Model 5 manufactured in Serbia by Zastava Arms
Model 5 also sold under Interarms and Charles Daly

Fits:
Zastava CZ99 and/or MP22 (depends when made)
Remington Model 5
Charles Daly MP22

These Shims Measure .442" X .555"

Fits Bolt Size .433" X .590" plus/minus .005"


TriggerShims Bolt Shims come in the following assortments, Buy Multiple Paks and Save $

NEW 5 Piece Kits ~ Include .0015" Shims for Finer Adjustment

  • 4 Pak Assortment - $11 includes 1 each .002", .003", .004" and .005"
  • 5 Pak Assortment - $14 includes 1 each .0015", .002", .003", .004" and .005"
  • Use Drop-Down V and Buy 2X Double or 3X Triple Pak and Save $
  • 2 Shim Pak - $7.50  *Specify your size in Box Below .0015" or .002" - .007"
  • You can Request Your Own Assortment Thicknesses In Box Below
  • Includes Free ~ First Class Mail Economy Shipping

.442 X .555 Remington 5 Bolt Shims

Item # SS-REM5/BS

Click Box to Choose Different Quantities

Remington 5 Bolt Shim Pak 442 X 555
Choose Assortment Shim Pak
Enter Choice / Request Below

👉Link To: ADD USPS TRACKING UPGRADE with SHIPPING PROTECTION

👉Link To: INTERNATIONAL TERMS / POSTAGE $1


Remington 5
Bolt Shim Instructions
Bolt Shim Instructions
TriggerShims Snek

LANCE'S TECH TIP:
Rimfire Bolt Shim Installation
~ A General Guide ~

Rimmed Cartridges use the thickness of the cartridge rim for head-spacing.
.22 Rimfire Cartridges Headspace on the Case Rim.
The Actual Headspace is in the Recessed Face of the Bolt.
You Must Make Sure this Recessed Bolt Face is Equal To or Deeper Than You Rim for Safety
Generally Speaking there is extra room left in production guns between the Bolt and Breech to accommodate a wide variety of ammunition with varying rim thicknesses
You should first measure the depth of your bolt face pocket to insure it meets SAAMI Headspace minimum depth.
Shimming between the two bolt halves ensures the bolt is seating the cartridge up gently against the breech with your chosen brand of ammunition.
You can use our color coded numbered shims like a gauge to find the when the bolt face touches the barrel breech face, and then calculate where you want to be with your bolt headspace depth and rim thickness measurements.
I cannot tell you which shim best works with your rifle, you decide that yourself by fitting and feel and by shooting.
Installing Bolt Shims requires fitting by hand, and checking with the Bolt installed in the Rifle, and Locked Down - you do not measure with the Bolt out of the Rifle.
To establish the Bolt/Breech fit, shims are installed and fitted on an empty chamber.
If possible it may give you a better feel if you leave the extractors off some rifles while fitting shims.
Start with a 4 or 5 Pak of shims, install the .0015" or .002" thinnest shim and see how your bolt closes, if it seems to close as normal, then continue to install each thicker shim until the bolt starts to close harder than normal, stacking shims if necessary. At the point where your bolt begins to close hard, that was the amount of slack that was in your bolt, measured by whatever shim or shims combined were needed to bring the bolt up tight to the breech. Now it is best to remove that shim, and step back one number, example would be if a .005" Red Shim causes the bolt handle to close harder than normal, then take it out and install a .004" Purple Shim. If you have to force or put undue stress on your bolt to close it, you should reduce the number of shims. You will generally only use 1 of the 4 or 5 shims in the package, but you can stack shims together if needed. When you have the correct shim installed, your bolt should close normally or just (ever-so) slightly tighter than normal. If the bolt closes slightly tight, it is best to back up one step, remove .001"
Put a very small drop of oil on the shim. Now you can go to the range and with the barrel pointed in a safe direction, once again check fit with your favorite ammo.
Due to variations in rim thickness, you may have to reduce the thickness of shims, remember you have already removed all the excess headspace from the bolt/breech, so now the only thing to do is remove thickness (shims) if / as needed to get to your sweet spot or required headspace for the rim thickness of your favorite cartridge.
For Longest Shim Life use a drop of oil or a (very small amount of) grease on your shim.
If you have to force or put undue stress on your bolt to close it, you should reduce the number of shims. A minimum of clearance should be maintained, while maintaining proper headspace. Do not put undue stress on the bolt by shimming too tightly as it is unnecessary!
At no time do you want to force the bolt to close, or to crush the rim, did I explain that clearly?
Forcing the Bolt to Close will put premature wear on the bolt shims and will not increase accuracy.
If you have any question, use a headspace gauge to check for proper headspace.
Bolt Shims have in many instances cured light strikes. Will they help with Accuracy? Don't take my word for it, Read our Customer Reviews or ask our Customers
Simply Chambering More Consistently Yields More Consistent Results.
Your Satisfaction is Guaranteed, if you feel you receive no benefit you may send your shims back for a Full Refund.

Copy and Paste This Link for Everything You Need To Know About Rimfire Headspace from Kurt the Gunsmith:
https://kurtthegunsmith.com/everything-you-need-to-know-about-headspace/

TriggerShims Bolt Shim Instructions Copyright 2025
V5/2025


TriggerShims Snek

Rimfire Rifle Bolt Shim Index


BoltShim-INDEX 9/24

Our Ever Expanding Selection of Rimfire Rifle Bolt Shims

Links to Our List of .22 Rifle Bolt and Barrel Shims

  1. Anschutz 54 ~ Now In Stock!
  2. Bergara B-14R Rimfire Bolt Shims
  3. CZ and BRNO Rimfire Bolt Shims
  4. CZ 457 Rimfire Bolt Shims
  5. Kimber 82G Target Rifle Bolt Shims
  6. Lithgow LA 101 and SA 2020 Rimfire
  7. Marlin 80 / 983 Rimfire Bolt Shims
  8. Mossberg 44 U.S. Bolt
  9. Mossberg 144 LSB Bolt
  10. Remington 5 Bolt Shims
  11. Remington 40X Bolt Shims
  12. Remington 504T Bolt Shims
  13. Remington 513T / 521T Rimfire Rifle
  14. Remington 540X Bolt Shims
  15. Ruger American Rimfire Bolt Shims
  16. Ruger 77/17 77/22 Bolt Shims
  17. Savage BMag Bolt Shims
  18. Savage MKII Bolt Shims - Prototype
  19. Springfield Armory Model 2020 Rimfire
  20. Suhl 150 Rimfire Rifle
  21. Tikka T1x and Sako P72 / M78 Rimfire Rifle / Walther KK300
  22. Walther KK500 Rimfire Bolt Shims
  23. Winchester 43 and 52 Bolt Shims
  24. Winchester 69 and 75 Bolt Shims

    25. ~ Barrel Shims ~

  25. CZ 455/457 Barrel Shims
  26. CZ 455/457 XL Barrel Shims
  27. 10/22 Barrel Shims
  28. 2500X and Trident Barrel Shims
  29. 3/4" Shank Bull Barrel Shims

NOTE: email me to be put on a list to Request a New Bolt Shim ~ Send Lance an Email ~

Unsolicited Testimonial:
Just a friendly note on the bolt shims I purchased and installed. My 5 shot group went from dime size at 50 yds to everyone touching and not being able to count individual holes.
Thank You for a Great Product ~ Riley in WV

Unsolicited Testimonial:
Lance, I simply wanted to say thank you for providing Bolt Shims. My first one installed was on my Bergara B-14 22 Trainer. I won the club season matches in 2022. It's more accurate now than my winning season. After seeing an improvement, in an already accurate rifle, I've shimmed my Bergara Shooting Rimfire barreled action, two CZ 457, my 2020 Springfield, and my my 54 Annie. The Anschutz allowed for 5th place in the IR 50/50 factory class last year. I shimmed it yesterday. The common fliers were less frequent and overall consistency was improved. A noticeable improvement was seen in all the rifles.
Thanks again for offering a great product ~ Rob in NC




Remington Shotgun Shims and Parts


BOX870

Remington 870 / 1100 Trigger Shims

.156" X .310"

Trigger Shim Pak Assortments BELOW are as follows;

2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
-OR-
Choose ANY Pak and Specify Your Requested Thickness in Comment Box
Available in Stainless Steel ~ .002" - .009" Thickness

156X310 ~ Universal 1022 Hammer / REM 870 T Shim
Shim Thickness
Enter Choice / Request Below

Remington Rifle Gun Springs


Remington 700 Rifle
Reduced Power Trigger Spring

Trigger Spring for Remington 700 Only -
Reduced Power - Improved let-off and trigger pull.
Long and Short Actions


Stock No. 33240........8.95 Free USA Only Shipping


Remington Rifle Extra Power Ejector Spring

700, 721 and 722 Series
Stock No. 33243........8.95 Free USA Only Shipping


Wolff Blitzschnell Speed-Lock Striker Springs for
Remington Bolt Action Rifles - Extra Power

700, 721 and 725 Long and Short Actions

Note: Factory Standard Spring Weight is #24
Our Extra Power Springs are #28 - The Most Popular Weight

Note: 40X Centerfire use No. 63428

Stock No. 63428 Short Action #28 ..........$14.95 Free USA Only Shipping
Stock No. 63528 Long Action #28 ..........$14.95 Free USA Only Shipping

Choose Short or Long Below

UPGRADE FROM FREE ECONONY SHIPPING ~to~ SHIM TRACKING w/ SHIPPING PROTECTION #ESU

~ SHIMS ONLY ~
~ $5.00 U.S. Tracking UPGRADE ~

NOW Includes
~ SHIPPING PROTECTION* ~
~ USA ONLY ~

Upgrade from FREE ECONOMY MAIL to
Bubble Pak w/ Tracking

(Shims Only) Orders - Add TRACKING $5.00 - USA ONLY

Shim orders DO NOT include Tracking!

THIS IS FOR SHIMS - ALL OTHER ORDERS Include Tracking

~Click the ADD TO CART button below ANYTIME BEFORE WE SHIP SHIMS~

Enter Customer Shipping Name Below

Continental USA, AK & HI ONLY
* USPS Ground Advantage™ Service
* Replacement for items lost or damaged during shipping


~Click Here~ for U.S. PRIORITY Mail

👉Link To: ADD USPS TRACKING UPGRADE with SHIPPING PROTECTION

👉Link To: INTERNATIONAL TERMS / POSTAGE


We Cheerfully accept Cash, Money Order, and Credit Cards through our Secure PayPal Check-Out

All Website Orders are Shipped the Next Business Day

I will Ship Shims to USA, Canada and International

Gun Parts Shipped to USA Only


PayPal ChargeCard Picture.gif

"American Made Gun Shims" - GunShims.com - TriggerShims.com
and
TriggerShims is a Trademark
of
Shively Sales
Michigan Center, Michigan

All Material Copyright of Lance Shively
2008 ~ 2025

God Bless and Make America Great Again!

BY PURCHASING SHIVELY SALES PRODUCTS
YOU ASSUME ALL RESPONSIBILITY FOR THEIR SAFE INSTALLATION AND USAGE.
YOU RETAIN ANY AND ALL RESPONSIBILITY FOR YOUR OWN ACTIONS. Be Safe!!

If you have any questions or safety concerns, see a qualified Gunsmith.

I manage this site myself, Please Report Any Website Problems to;
Lance at Webmaster@TriggerShims.com

I Reserve the Right to Refuse Service to Anyone

Republic.... I like the sound of the word. It means people can live free, talk free, go or come, buy or sell, be drunk or sober, however they choose. Some words give you a feeling. Republic is one of those words that makes me tight in the throat - the same tightness a man gets when his baby takes his first step or his first baby shaves and makes his first sound as a man. Some words can give you a feeling that makes your heart warm. Republic is one of those words. - John Wayne in the Alamo
