Smith & Wesson J Frame Trigger Shim Kit

Small J Frames

Smith & Wesson J Frame Trigger Shim Kit

Custom made Trigger, Hammer, Cylinder and Yoke Shims for the
Smith & Wesson J Frame Revolver
By installing my Custom Hammer and Trigger Shim Kit, you can eliminate drag created by the hammer and trigger rubbing the frame.

Cylinder and Yoke Shims available to address wear.



 J-Frame (small) Models


 Smith & Wesson Model 36—known as the "Chiefs Special"; first J-frame (1950), 5-shot revolver
 Smith & Wesson Model 37—known as the "Chiefs Special Airweight";
 Smith & Wesson Model 60—first regular production all stainless steel revolver (1965); the stainless Chief's Special
 Smith & Wesson Model 340PD—first revolver made of scandium alloy, very light, possibly the final evolution of the classic J-frame Chief's Special introduced over 60 years earlier, weighs 12 ounces
 Smith & Wesson Lemon Squeezer—The "lemon squeezer," also known as Model 40, Model 42 and 38 Safety
 Smith & Wesson Centennial—standard and "Airweight" (Models 40, 42, 442, 640, 642) (at one time available in 9x19mm caliber as the Model 940)
 Smith & Wesson Chief's Special—standard and "Airweight" (Models 36, 37, 60, 637)
 Smith & Wesson Bodyguard—standard and "Airweight" (Models 38, 380, 49, 438, 638, 649)
 Smith & Wesson Ladysmith

Our Shims are Available in .002" through .009"
Order Any Kit on This Page and Request Custom Sizes via Email.



Your Payment is Secure with
our PayPal/Visa-MC Checkout.

Smith & Wesson J Frame Revolver Shims

Smith & Wesson J Frame Revolver

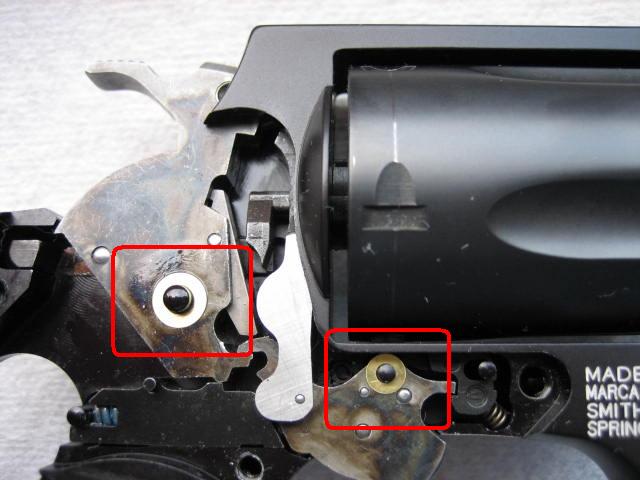

Shims shown installed on Hammer and Trigger. Click to Enlarge

My Custom Made Shim Washers for the Smith and Wesson J-Frame revolver will allow you to center the Hammer and Trigger, eliminating drag caused by these parts rubbing the frame.


My Shim washers are custom manufactured specifically to fit the J-Frame, and are made with USA 300 Series Stainless Steel.



Smith & Wesson J-Frame Kit in 300 Series Stainless Steel


SW J Frame Hammer/Trigger Shim Kit

Stainless Steel J-Frame Shims for the Hammer and Trigger Pin.


Three Stock Thicknesses,  .002", .003",  and .005"
Regular Assortment is as follows:
4 Piece Kit comes with .002" Shims
8 Piece Kit comes with .002" and .003" Shims
12 Piece Kit comes with .002", .003" and .005"
.004" and .006" Shims Available by Request
Custom Assortments Available by Request
You can choose a Specific Thickness from Drop-Down Box
Note: J-Frames generally use very thin shims, .002" or .003"


Stock # SWJ-SS

 Stainless 4 Pcs Shim Kit  $8.00 Free Shipping
 Stainless 8 Pcs Shim Kit  $12.00 Free Shipping
 Stainless 12 Pcs Shim Kit  $17.00
Free Shipping

Smith & Wesson J-Frame Kit Shim Thickness Enter Your Thickness Below


TECH TIP:

S&W Hammer and Trigger Shim Installation Instructions

To install shims in your S&W Revolver, you should disassemble and remove the Hammer and Trigger springs,
begin by installing a shim on each side of the Trigger and Hammer, re-install the frame side plate (without springs) and check for binding. If the Trigger and Hammer move freely, continue to add shims.
At the point you begin to trap or bind the hammer and trigger, you will have your approximate free clearance, and you can then remove shims and install the proper amount, leaving a final clearance of around .003" to .004" - and reassemble the unit complete.

I suggest a 12 Piece Kit to provide ample Shims for this procedure.

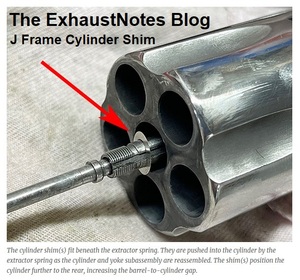

Smith & Wesson J Frame - Center Fire Revolver Cylinder Shim / End Shake Bearing Paks



Stainless Steel Centerfire J Frame Cylinder Shims - Endshake Bearings to Reduce Cylinder End Play SW J Frame Centerfire Revolvers Cylinder Shims

Cylinder Shims can be stacked to obtain proper clearance.
Nominal O.D. of .294" X I.D. of .190"


Note - .22 Cal 8 Shot Models use this shim

Note -  .32 Cal Mod 30-1 uses J .22 R.F. shims

2 Pak   Comes in .002"
4 Pak   Assortment comes with 2 each  .002" and  .003"
6 Pak   Assortment comes with 2 each  .002",  .003" and  .004"


12 Pak Assortment comes with 3 each  .002",  .003",  .004" and  .005"
24 Pak Assortment comes with 6 each  .002",  .003",  .004"  and  .005"

30 Pak Gunsmith Special Assortment comes with 6 each  .002",  .003",  .004", .005"  and  .006"


-OR- Choose any Pak and Specify your Thickness via Drop-Down Box,
e-mail or use "Note to Seller" in PayPal


Price includes Free Shipping
Center Fire Revolvers Only


Stock # SW-JCF/CS

S&W J Center Fire Cylinder Shim Pak Shim Thickness Enter Custom Thickness Below

Smith & Wesson J Frame - Rimfire .22 Caliber Revolver Cylinder Shim / End Shake Bearing PaksSmith and Wesson J Frame Rimfire Cylinder Shims



Stainless Steel Rimfire J Frame Cylinder Shims - Endshake Bearings to Reduce Cylinder End Play
Fits J-Frame .22 Caliber Models

Cylinder Shims can be stacked to obtain proper clearance.


Note - 8 Shot .22 Models use J CenterFire Shim

Note - This also fits some Older S&W I Frame Models


and .32 S&W Long J Frame and Mod. 30-1
Nominal O.D. of .357" X I.D. of .242"

2 Pak   Comes in .002"
4 Pak   Assortment comes with 2 each  .002" and  .003"
6 Pak   Assortment comes with 2 each  .002",  .003" and  .004"


12 Pak Assortment comes with 3 each  .002",  .003",  .004" and  .005"
24 Pak Assortment comes with 6 each  .002",  .003",  .004"  and  .005"

30 Pak Gunsmith Special Assortment comes with 6 each  .002",  .003",  .004", .005"  and  .006"


-OR- Choose any Pak and Specify your Thickness via Drop-Down Box,
e-mail or use "Note to Seller" in PayPal


Price includes Free Shipping


Rimfire Models Only
Stock # SW-JRF/CS

S&W .22 RF J Frame Cylinder Shim Pak Shim Thickness Enter Custom Thickness Below

Smith & Wesson J Frame Revolver Yoke Bearing Paks



Stainless Steel J Frame Yoke Shims - Yoke Bearings to Adjust Cylinder End Play SW J Frame Yoke Shims
Yoke Shims can be stacked to obtain proper clearance.

These Shims are installed between the Yoke and Frame.

Yoke Bearings are necessary when setting up the Yoke and Cylinder for Minimum Endshake.
Fits J Frame Revolvers with .263" Yoke Shaft.
Installation Instructions are not included.


Nominal O.D. of  .442" X I.D. of .265"

2 Pak   Comes in .002"
4 Pak   Assortment comes with 2 each  .002" and  .003"
6 Pak   Assortment comes with 2 each  .002",  .003" and  .004"


12 Pak Assortment comes with 3 each  .002",  .003",  .004" and  .005"
24 Pak Assortment comes with 6 each  .002",  .003",  .004"  and  .005"

30 Pak Gunsmith Special Assortment comes with 6 each  .002",  .003",  .004", .005"  and  .006"


-OR- Choose any Pak and Specify your Thickness via Drop-Down Box,
e-mail or use "Note to Seller" in PayPal


Price includes Free Shipping


Stock # SWJ-YOKE

S&W J Frame Yoke Shim Pak Shim Thickness Enter Custom Thickness Below

Hello Lance, I just wanted to say I am very pleased with this kit I recently purchased from you. I was able to fix the end-shake issue on my Smith and Wesson model 34-1 (.22 RF J-Frame Kit Gun) I had previously taken this gun to a so-called “gunsmith” who told me my gun was just “worn out” and unrepairable, but by using your end-shake shims it was restored to proper function. Your kit fixed my gun for $10.00, I am an extremely satisfied customer.
Chris in KY





Spring Kits Ship USA Only / No Exports

Spring Tool Information at the Bottom of this Page.

Smith & Wesson J-Frame Wolff Spring Kits


Smith & Wesson J-Frame Centerfire Revolver
Shooters Pak #17125     $14.95

J-Frame Shim Kit

Wolff 17125

Add a Stainless 4 Piece Trigger Shim Kit for just $5.00 More!


Includes Models: 31, 32, 34, 36, 360, 37, 38, 42, 442, 49, 60, 63, 631, 632, 637, 638, 640, 642, 649, 940
Shooters Pak - Reduced Power - This pak contains 1 each 8 pound reduced power hammer spring and 1 each 13, 14 and 15 pound reduced power rebound springs allowing adjustment for lighter and smoother trigger and hammer action.
Rebound Springs - Trigger rebound springs are common to all Smith & Wesson J, K, L and N frame revolvers. These springs greatly influence the double action trigger pull which is a major concern of competitive shooters. W.C. Wolff company offers reduced power rebound springs rated from 12 to 16 pounds. For reference, the factory rebound spring is 18 pounds. These springs lighten trigger and let-off functions for smoother and easier trigger pull.
Note: The Hammer Spring in this kit measures 1.650"
 Centerfire Revolvers Only


Add a 4 Piece Stainless Steel Trigger and Hammer Shim Kit
For Just $5 More,
OR add an 8 Piece SS Kit for just $10.00 More.



 Wolff 17125   $14.95   Free Shipping
 Wolff 17125 with 4 SS shims 19.95 Free Shipping
 Wolff 17125 with 8 SS shims   $24.95   Free Shipping

J-Frame

SMITH & WESSON .22 Caliber J-FRAME REVOLVER
MODELS 317, 650, 651 RIMFIRE MODELS
#17126   $14.95

Shooters Pak - Reduced Power - Stock Number 17126 - This pak for rimfire models contains 1 each 9 pound reduced power hammer spring and 1 each 13, 14 and 15 pound reduced power rebound springs allowing adjustment for lighter and smoother trigger and hammer action.
 Note: Rimfire models 317, 650, 651 have a 12 Lb. factory hammer spring.
The Hammer Spring in this kit measures 1.750"


Add a 4 Piece Stainless Steel Trigger and Hammer Shim Kit
For Just $5 More,
OR add an 8 Piece SS Kit for just $10.00 More.

Wolff  17126     $14.95     Free Shipping !
Wolff 17126  with 4 SS shims  $19.95   Free Shippin
Wolff 17126  with 8 SS shims $24.95  Free Shipping

J-Frame

Customer Reviews

Hi Lance,
 I installed the shims in the J-frame last night—unfortunately it won’t accept the right-side hammer shim because the transfer bar is too close. (Am sure two would work fine with the hammerless models.)
 I just used a .006” shim on the left side only and it worked out fine. As with the SP101, I am well satisfied and amazed by the improvement.
 Dennis in NC



Hi Lance, the Shim Kit is incredible!
I can only assume that they are very difficult to make. Sure glad I found them. The trigger on my 31-1 was rubbing on the frame and one .003 shim took care of it.
Well worth the price! Thanks again, Cliff in TX




SHIMS AVAILABLE  FOR CUSTOM ORDERS

Single Shims are available for custom orders from our inventory.
Price includes shipping.
Use comments or e-mail to indicate the size & style you require.



 Any Style Stainless Shim Price includes Free Shipping

Custom Shim Pak Specify Thickness and Type

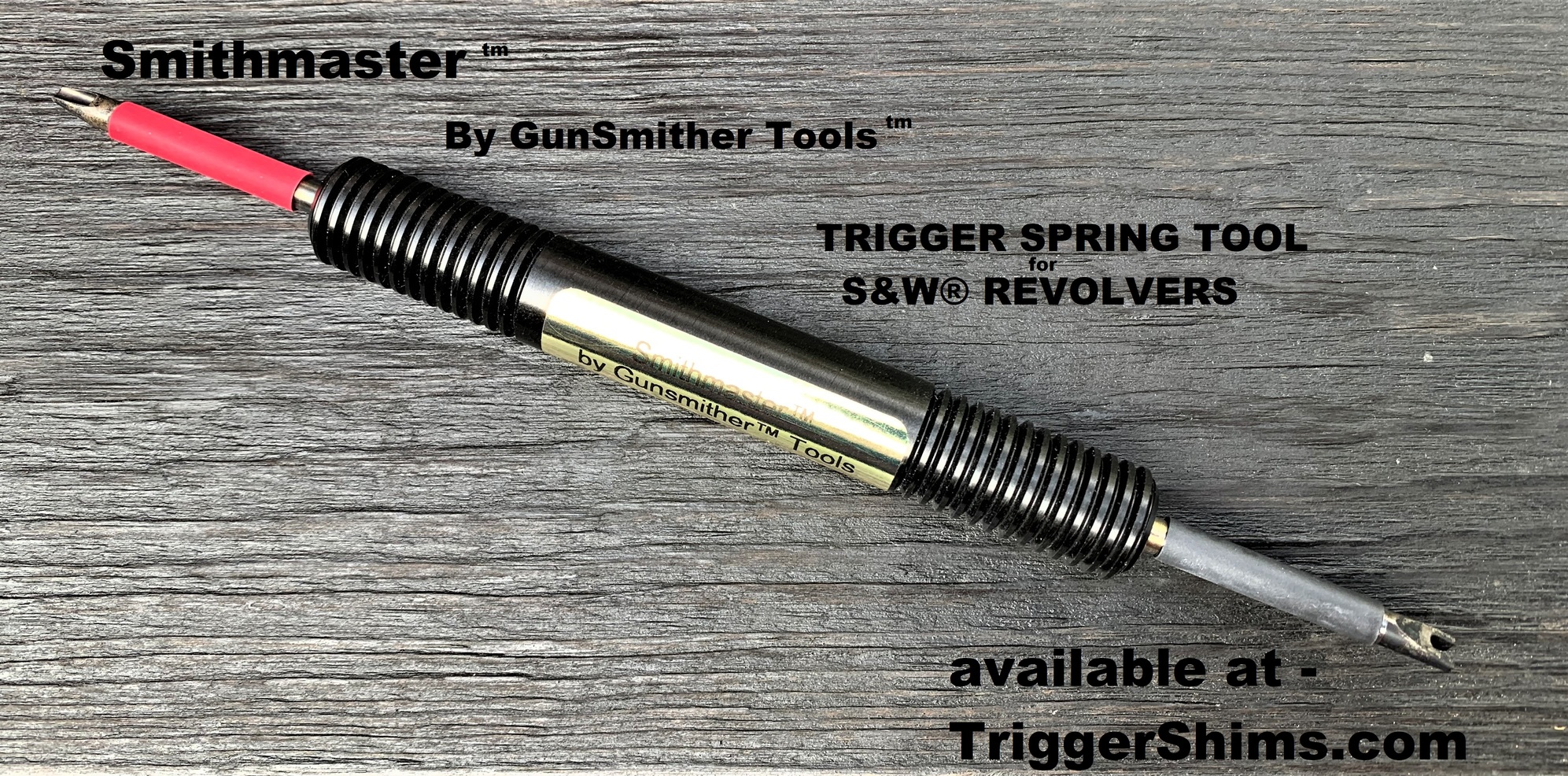

Gunsmither Spring Removal Tools

http://www.Gunsmithertools.com

Link to GunSmither Tools

We Cheerfully accept Cash, Money Order, and Credit Cards through our Secure PayPal Check-Out

All Website Orders are Shipped the Next Business Day

I will Ship Shims to USA, Canada and International

Gun Parts Shipped to USA Only
