COLT REVOLVERS

Colt Revolver Spring Kits are on our Wolff Gunsprings Page

TriggerShims Brand Shims for Colt Revolvers
Shims for Trigger, Hammer, Cylinder Endshake and Crane
All Made from USA 300 Series Stainless Steel in .002" - .009" Stock


Colt Revolver Trigger / Hammer Shims

Our Colt Hammer and Trigger Shim Pak Assortments BELOW are as follows;

2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"

-OR-

Choose ANY Pak and Specify Your Requested Thickness in Comment Box
Available in Stainless Steel ~ .002" - .009" Thickness

Box 1


Colt M1917 / Colt New Service Revolvers

Trigger and Hammer Shims for the Colt U.S Government M1917 Revolver and
Colt New Service Revolver

Trigger (.140" X .244")
Hammer (.208" X .419")

Colt M1917 New Service Hammer Trigger Shims
Colt M1917/NS TRIGGER Shims
Shim Thickness Choice
Enter Choice / Request Below

Colt M1917/NS HAMMER Shims
Shim Thickness Choice
Enter Choice / Request Below

Colt E/I Frame Revolvers

These include the Python, Official Police, Officer's Model Revolvers,
First Generation Troopers and the Model 357

Trigger (.120" X .190")
Hammer ( 198" X .243")


Colt E/I Frame Trigger Shims
Colt Python - E/I Frame TRIGGER Shims
Shim Thickness Choice
Enter Choice / Request Below

Colt E/I Frame Revolver Hammer Shim
Colt Python - E/I Frame HAMMER Shims
Shim Thickness Choice:
Enter Choice / Request Below

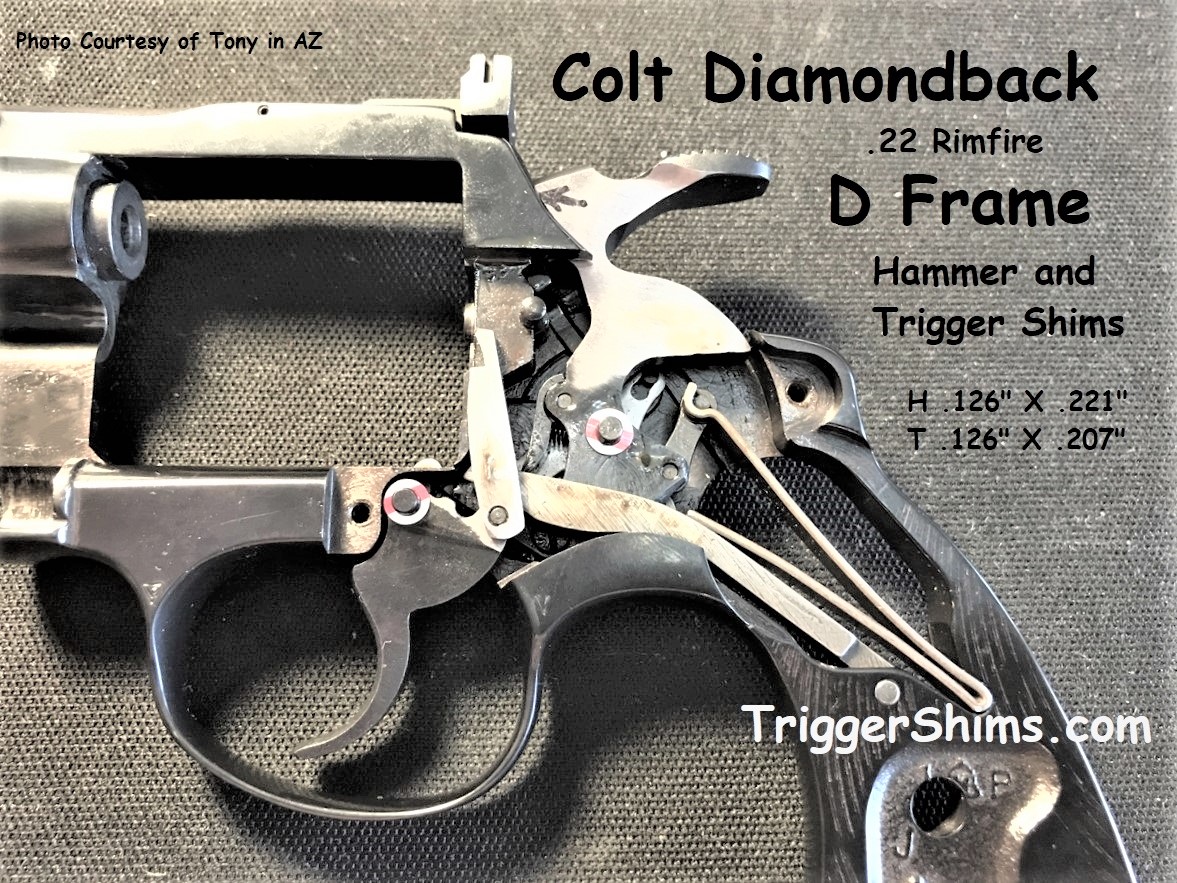

Colt D Frame Revolvers

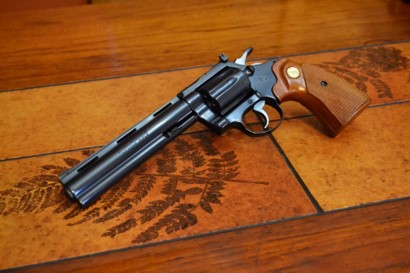

Colt D Frame Diamondback .22 Revolver

D Frame Diamondback .22 Revolver
May Fit Other D Frames including ~
Detective Special, Police Positive Special

Trigger (.126" X .207")
Hammer ( 126" X .221")


Diamondback Revolvers built from 1966 to 1991
in Calibers .22 LR and .38 Special

These shims are made to fit revolvers with
nominal 1/8" Hammer and Trigger pins

Pistolsmith Tony contacted me about a new in the box, 1980 or 81 Colt Diamondback .22 Revolver. He noticed that the hammer and trigger had quit a bit of side to side play. In single action mode, it was no problem, but in double action the looseness of the two parts in the frame and on their respective pins allows them to shift position enough that the hammer would cock off to the left and impact the edge of the hammer channel in the frame

Colt D Frame Diamondback .22 Revolver

Fail To Fire ~ FTF

Tony said he was getting a lot of FTF in Doule Action, so he contacted me and asked if I could help. Tony disassembled the revolver and took pictures and accurate measurements, drew diagrams and prints, and from those I produced these shims for Tony's revolver.
While the shims did not fully cure the FTF problem, (he believes a new mainspring will be the final cure for that) they did remedy the Hammer Rub issue and helped immensley.

Colt Diamondback - D Frame TRIGGER Shims
Shim Thickness Choice
Enter Choice / Request Below

Colt Diamondback - D Frame HAMMER Shims
Shim Thickness Choice:
Enter Choice / Request Below

Thanks to Pistol-smith Tony for his Expertise on this Project!!


Colt New Frontier Single Action .22
Trigger and Hammer Shims

Trigger Shim

Nominal O.D. of .243" X I.D. of .126"
Same Shim as S&W Combat Magnum-X

Hammer Shim

Nominal O.D. .310" X .189"
This Shim Fits the Colt New Frontier Hammer,
The Uberti Colt Dragoon, and the High Standard Double 9 Revolver

Colt Frontier Trigger Shims
Shim Thickness
Enter Choice / Request Below

Colt Frontier Revolver / Uberti Colt Dragoon Hammer Shim Pak
Shim Thickness
Enter Choice / Request Below

Colt Revolver Cylinder / Crane Shims

Our Colt Hammer and Trigger Shim Pak Assortments BELOW are as follows;

2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"

-OR-

Choose ANY Pak and Specify Your Requested Thickness in Comment Box
Available in Stainless Steel ~ .002" - .009" Thickness

Box 2

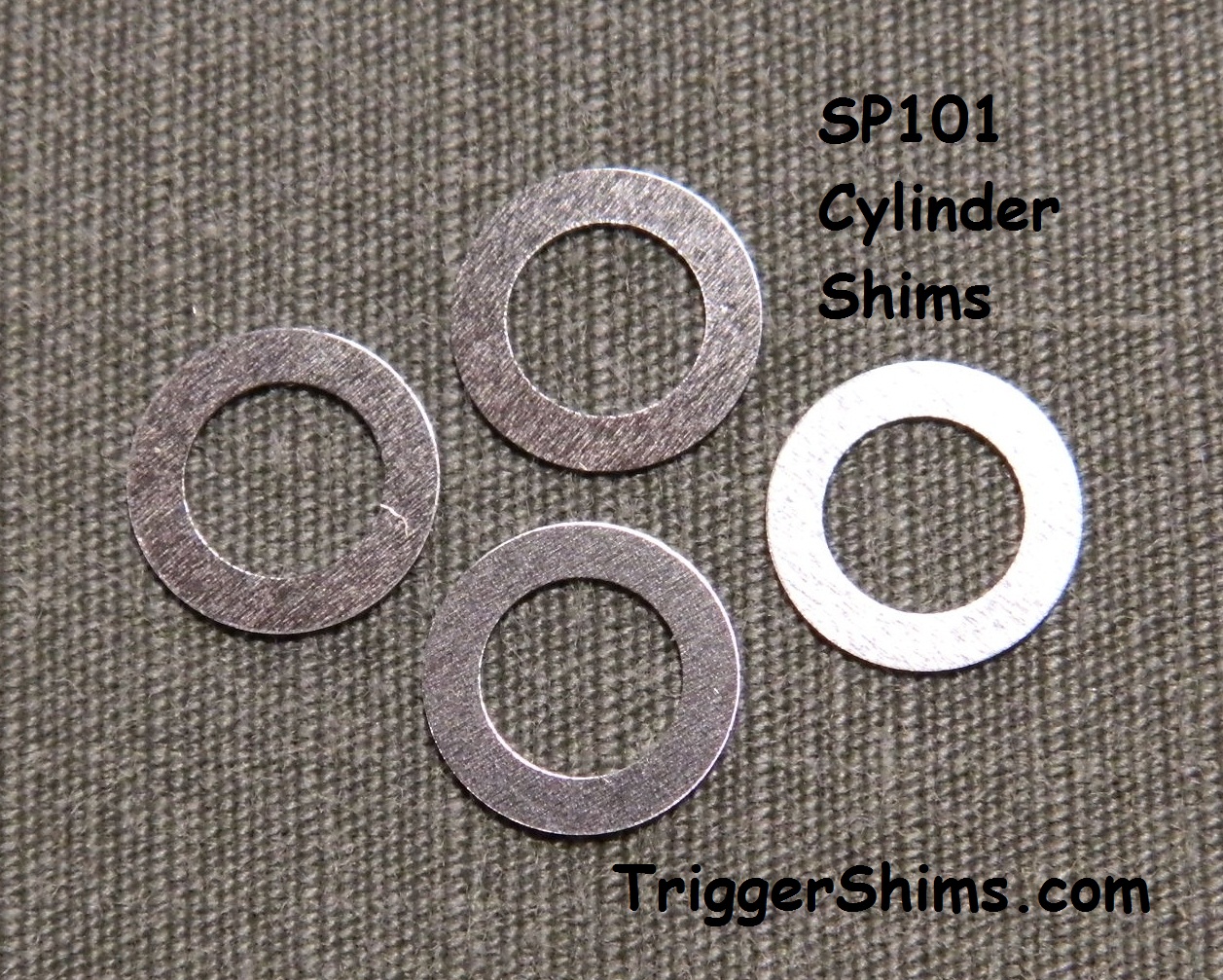

Colt Agent (early) Revolver Cylinder Endshake Shims

SP101 Cylinder Shims

Our Shims will fit the Colt Agent before 1966
also fits - Ruger SP101

Nominal O.D. of .337" X I.D. of .221"

Price includes Free Shipping

Colt Agent / SP101 Cylinder Shim
Shim Thickness
Enter Choice / Request Below

Colt Python Revolver Cylinder / Endshake Shims

Our Shims will fit the Colt Python Colt Python Cylinder Shim


Made from USA Full Temper 300 Series Stainless Steel
Nominal O.D. of .357" X I.D. of .265"
Made to fit end of Crane inside Cylinder,
Check your size before ordering.
NOTE: This is not a Factory recommended method of repair for this model
Consualt a qualified gunsmith if you have questions

Colt Python Cylinder Shim
Shim Thickness Choice
Enter Choice / Request Below

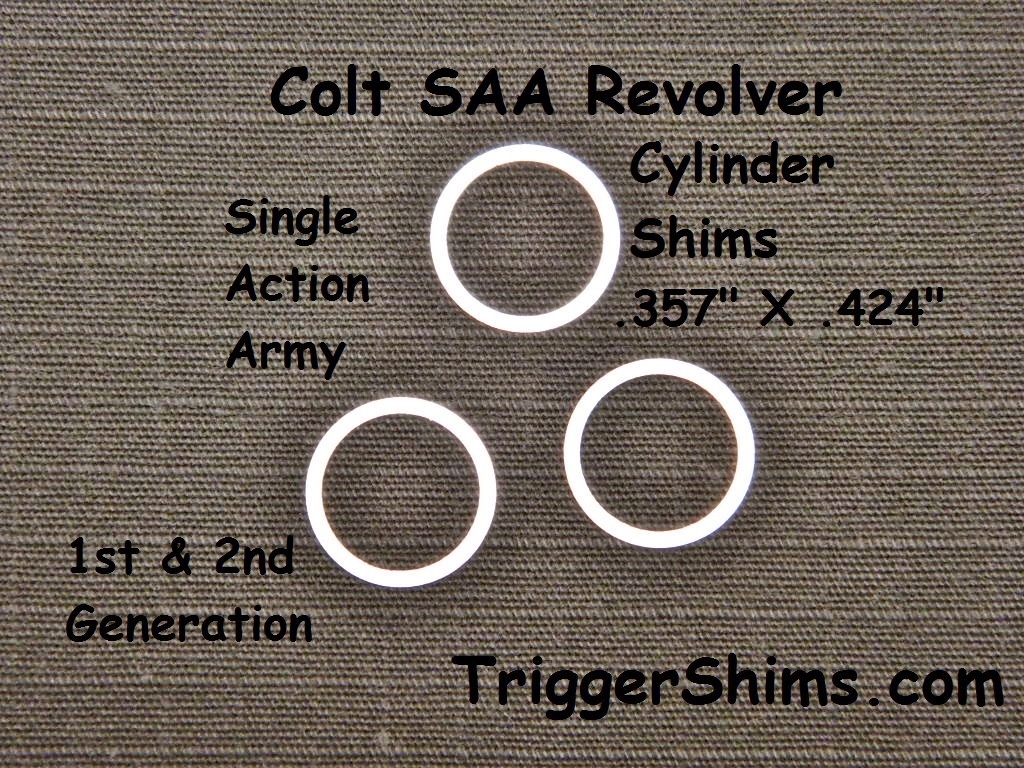

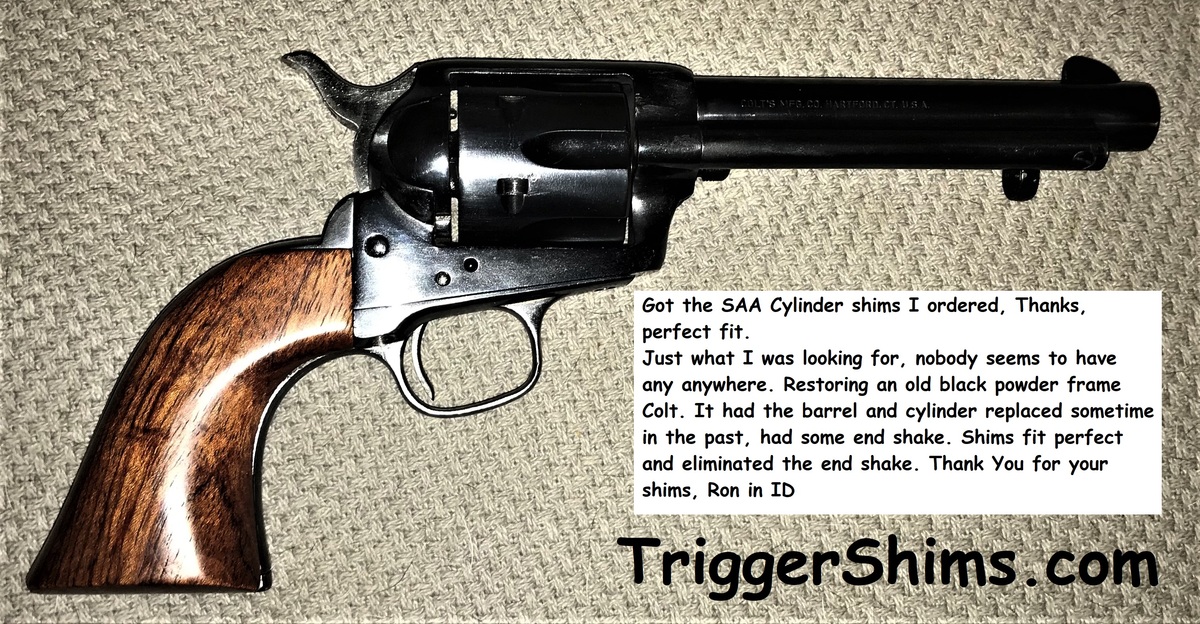

Colt Single Action Army Revolver Cylinder / Endshake Shims

Our Shims will fit the Colt SAA

Colt Single Action Army Cylinder Shim

Fits First and Second Generation Colt SAA and Authentic Reproductions only ~ Uberti SAA / Hawes
Also fits Third Generation with Removable Bushing.

Nominal O.D. of .424" X I.D. of .357"

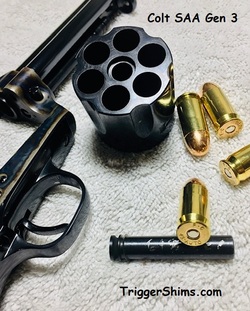

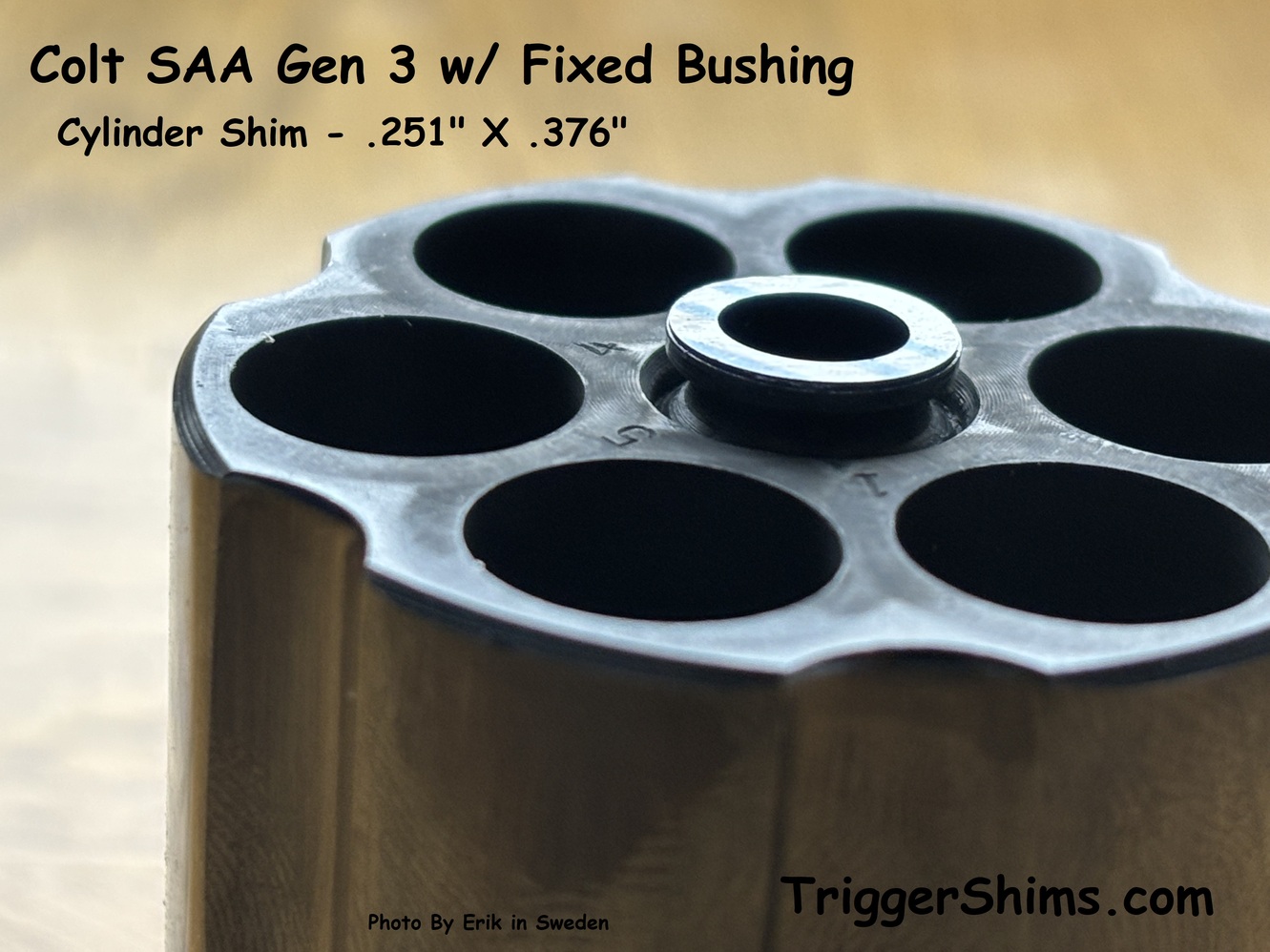

Colt SAA Gen 3 Cylinder Shim
Colt SAA Cylinder Shim
Shim Thickness Choice
Enter Choice / Request Below

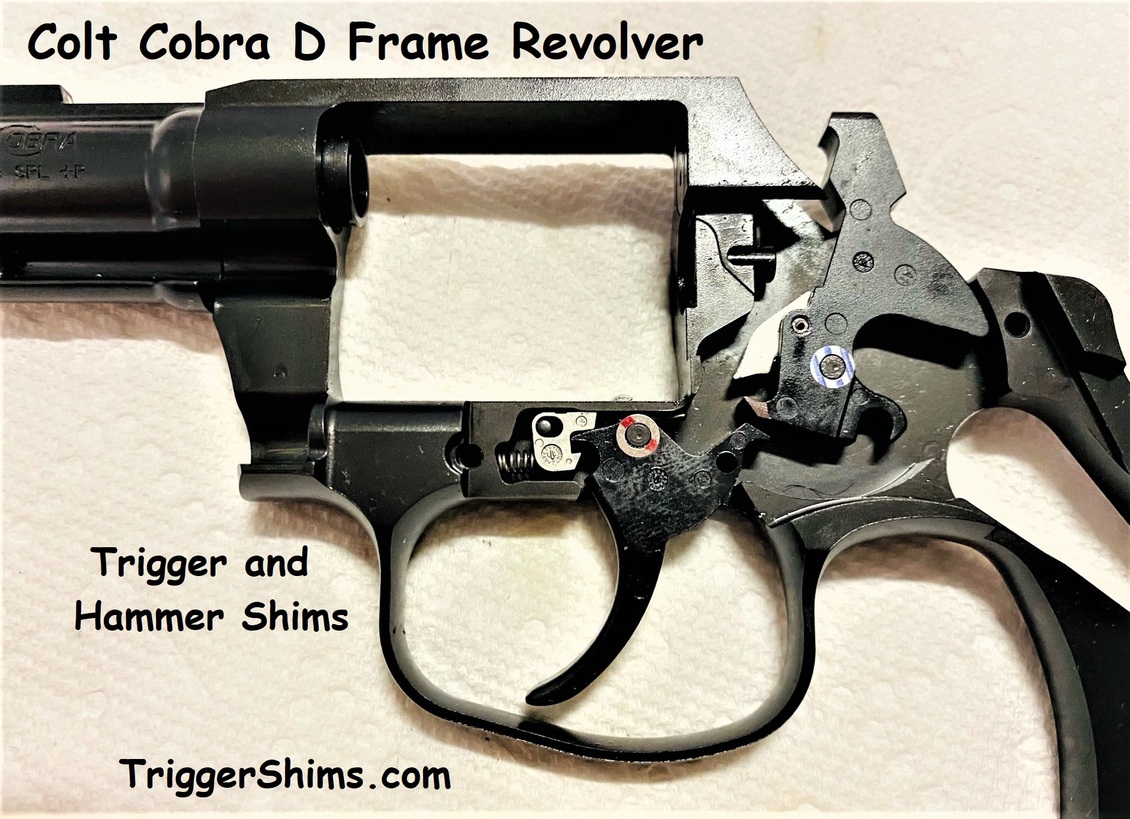

Colt Police Positive Revolver Cylinder / Endshake Shims

Our Shims will fit the Colt Police Positive D Frame Revolver
May Also Fit Other D Frames Including;
Agent, Cobra, Diamondback, Others ~ Check Your Sizes Before Ordering

Colt Police Positive Cylinder Shim

Nominal O.D. of .401" X I.D. of .337"


Colt Police Positive Cylinder Shim
Shim Thickness Choice
Enter Choice / Request Below

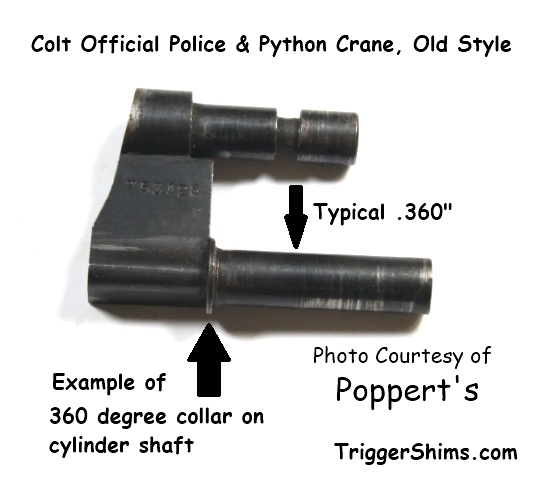

Colt Official Police Revolver Cylinder / Endshake Shims

Colt Officier's Model Revolver

Colt Official Police Revolver Cylinder Shim


Colt Army Special / Official Police and Colt Officer's Model Revolver


Fits many "E" Frame Revolvers
Known to fit Colt New Army and Navy
and Colt Army Special
Pythons up to the early 1970's
1969 and prior (pre-MK III) Troopers
Early I-Frame with 1-Piece Extractor Rod, including models 3-5-7
All Trooper .38/.357 and Early Python, Detective Special and Viper

Also Fits ~ Enfield N0. 2 Mark 1 Revolver
Check your shaft size to verify ~ Fits .355" to .360" Crane

Nominal O.D. of .458" X I.D. of .362"
Stock # Colt OP

Colt Official Police Cylinder Shim
Shim Thickness Choice
Enter Choice / Request Below

Colt Army Special (Early) Crane Shims

Early Colt Army Special Crane Shim

Nominal O.D. of .500" X I.D. of .419"

Colt Army Special (Early) Crane Shim
Shim Thickness Choice
Enter Choice / Request Below

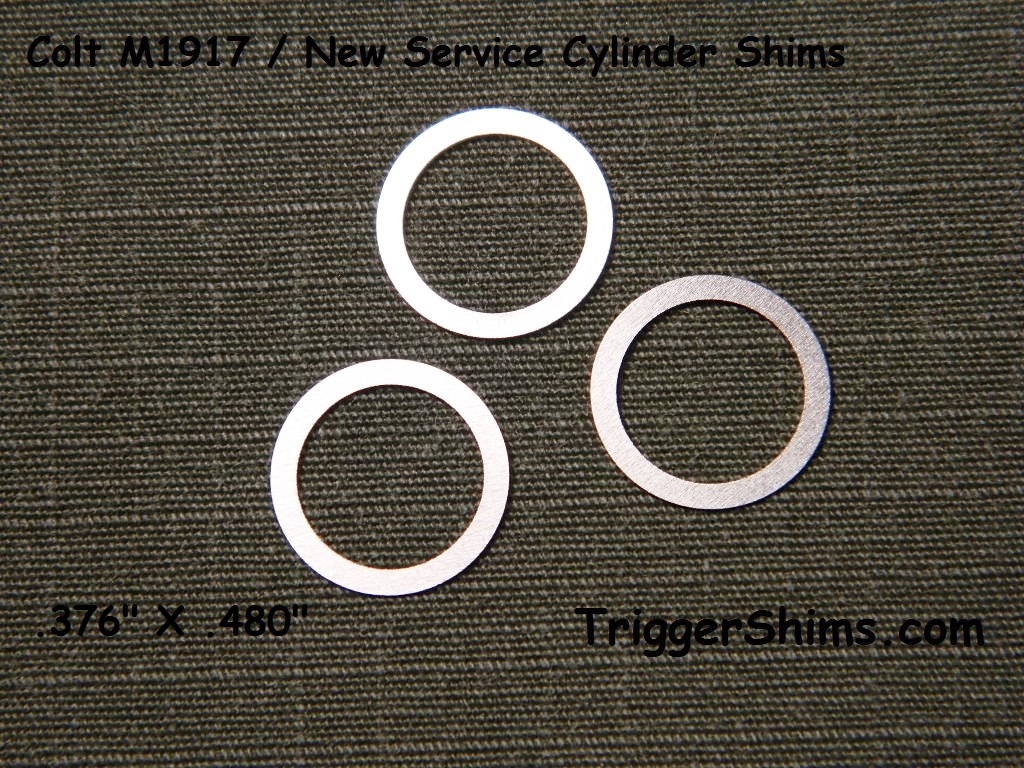

Colt M1917 / New Service Cylinder Shims

Colt M1917 New Service Cylinder Shims

Nominal O.D. of .480" X I.D. of .376"

Colt M1917/NS - Cylinder Shims
Shim Thickness Choice
Enter Choice / Request Below

Colt M1917 / New Service Crane Shims

Colt M1917 - New Service Crane Shim

Nominal O.D. of .511" X I.D. of .424"

Colt M1917 / New Service Crane Shims
Shim Thickness Choice
Enter Choice / Request Below

Colt New Frontier Single Action .22
Cylinder Shims

Also Fits Heritage Rough Rider .22

Nominal O.D. of .419" X I.D. of .221"

Many Colt SA .22 and Clones with 7/32" Base Pin
Installs on front of cylinder - Held by Base Pin
Stock # Colt N.F. /CS

Colt New Frontier Single Action .22 Cylinder Shims
Shim Thickness Choice
Enter Choice / Request Below

An Excellent Resource for Colt Revolvers is here   http://www.coltfever.com/Home_Page.php
