Springfield Shims and Parts

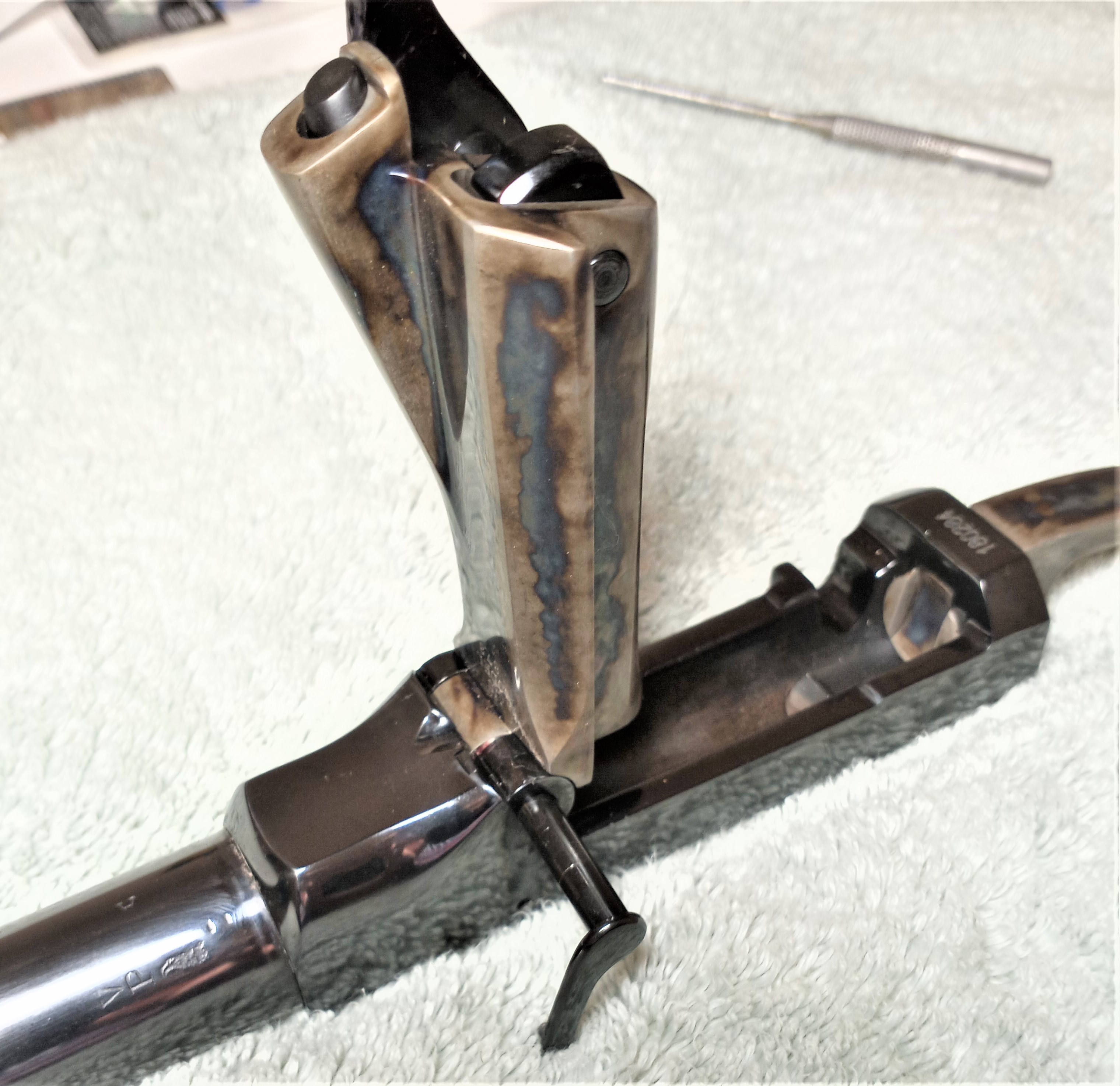

U.S. MILITARY SPRINGFIELD 1873
1873 SpringField Breech Block Hinge Shim
Nominal O.D. of .419" X I.D. of .221"
Available .002" to .010"
This is the same shim we use on many Colt SA .22 Revolvers as a cylinder shim with 7/32" Base Pin
Note: Also fits the Breech Block Hinge on the 1873 Springfield
Installs on the Breech Block Hinge Pin with a .216" to .220" or 7/32" Diameter
Customer Ron Writes:
1. Remove barrel/breech from stock
2. Drive out hinge pin far enough for breech block removal but leave in enough to retain spring loaded extractor
3. Measure inside width of receiver and width of breechblock to determine shims needed
4. Place shims on breechblock with a tiny bit of oil, reinstall breechblock in a vertical manner. May require tapping with small hammer
5. Push hinge pin back in ~ Done.
6. Breechblock will now stay in any position due to tightness but still moves freely and without side to side slop
Stock # Colt N.F. /CS ~ Assortments BELOW are as follows;
2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
-OR-
Choose ANY Pak and Specify Your Requested Thickness in Comment Box
Available in Stainless Steel ~ .002" - .010" Thickness
1873 Springfield Breech Block / Hinge Pin Shims
Use ~ Stock # Colt N.F. /CS
Free Economy Shipping - First Class Mail
Springfield XD and XDM Sear Shims
Smith and Wesson M&P Pistol
Pivot Pin / Sear Shims Springfield XD, XDM Sear Pivot Pin Shims Springfield XD, XDM, S&W M&P These Shims fit between the Sear and Ejector and fit between the Sear and Striker and between the Striker and Frame. This keeps the Sear from Moving left and right and helps to produce a smoother trigger pull
Fits Smith & Wesson M&P Pistol Auto
Fits Springfield XD Service (4") XD Sub-Compact
XD Tactical (5") XDM
May Fit Other Models -
.120" X .190"
Trigger Shim Pak Assortments BELOW are as follows;
2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
-OR-
Choose ANY Pak and Specify Your Requested Thickness in Comment Box
Available in Stainless Steel ~ .002" - .009" Thickness
Springfield XD and XDM Pistol Disassembly and Reassembly Guide
The Disassembly and Reassembly Guide for the Springfield XD & XDM Pistol Pistol
FEATURES:
•The only current printed manual that includes information on ALL models.
•Easy to use -- Comb binding lies open and flat on your work surface.
•16 pages & 32 high-resolution grayscale images.
•Cardstock cover. Bright white paper
•UPC: 400100347232
The Disassembly and Reassembly Guide ~ Springfield XD & XDM Pistols
Item # GG-DRSpringfield.....$8.75 + $2.75 S&H ~ Includes Tracking
No Exports
Smith & Wesson M&P Pistols Disassembly and Reassembly Guide
The Disassembly and Reassembly Guide for the Smith & Wesson M&P Pistols
FEATURES:
•The only current printed manual that includes information on ALL models.
•Easy to use -- Comb binding lies open and flat on your work surface.
•20 pages & 52 high-resolution grayscale images.
•Printed in the USA with card stock cover and bright white paper
•UPC: 661799430913
The Disassembly and Reassembly Guide ~ Smith & Wesson M&P Pistols
Item # GG-DRS&WM&P.....$8.75 + $2.75 S&H ~ Includes Tracking
No Exports
Sometimes I wonder if the world is being run by smart people who are putting us on, or by imbeciles who really mean it ~ Mark Twain
Wolf High-Performance Target Loads
This is the ammo I use and recommend.
Five round groups in one ragged hole are possible with this ammo at 50 yards benchrest, as I have done it.
It may not be as consistent as the $15 a box stuff, but it fits my pocketbook when I want to make holes in paper!
Wolf 22 LR target ammunition is loaded with VihtaVuori powder prized by centerfire benchrest shooters for its consistent burn rates. The high-quality brass is formed using a proprietary manufacturing technique that maintains outstanding round-to-round consistency to help deliver consistent pressures and superb accuracy.
This ammo is sold and shipped through Brownell's - click the picture to go to Brownell's Wolff Ammo Page.
We hope you find what you are looking for here, but if not, Please click our Link to Visit Brownells.
TriggerShims is a Sales Affiliate with Brownell's and receives a small commision when you buy through our link.
Thank You!
SHIMS ONLY
$4 UPGRADE from ECONOMY SHIPPING
~ USA ONLY ~
(Shims Only) Orders - Add USPS TRACKING $4 - USA ONLY
MOST Shim orders under $50 DO NOT include Tracking and are sent in a ~Click the ADD TO CART button below to ADD USPS Tracking to your Shim Order
White Business Mail Envelope - Orders OVER $50 Include Free Tracking
You can Upgrade to USPS Mail Tracking on your SHIM ORDER for $4.00
This Upgrade includes a 6X9 Bubble Pak Mailer and USPS Tracking
(increases have driven our cost for Shipping and Packaging to almost $5)
THIS IS FOR SHIMS ONLY - ALL OTHER ORDERS Include this Upgrade
~Click Here~ for PRIORITY Mail
We Cheerfully accept Cash, Money Order, and Credit Cards through our Secure PayPal Check-Out
All Website Orders are Shipped the Next Business Day
I will Ship Shims to USA, Canada and International
Gun Parts Shipped to USA Only
