Ruger Mark Pistols

I II III IV and 22-45

Trigger Shims and Wolff Performance Spring Kits
for Ruger Mark I, Mark II, Mark III, IV and 22/45 Pistols


Ruger Mark IV Pistol Trigger Shims

Mark II Trigger Shims

All Models of Ruger Mark Pistols
including the Mark IV 22/45 Lite

Mark 2, 3, 4, and 22/45 Pistol Trigger Shims
fit the Mark II, III, IV and 22/45 Pistol Trigger Pivot Pin
(Ruger # A03400 and KA03400)

Trigger Shims

Our Trigger Shim Pak Assortments BELOW are as follows;

2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
-OR-
Choose ANY Pak Qty and Specify Your Requested Thickness .002" - .009" in Comment Box

Ruger Mark Pistol Shims are .157" I.D. X .251" O.D.

Price includes Free Shipping!

Mark Pistol Trigger Shims Choose Quantity
Shim Thickness Choice
Enter Choice / Request Below

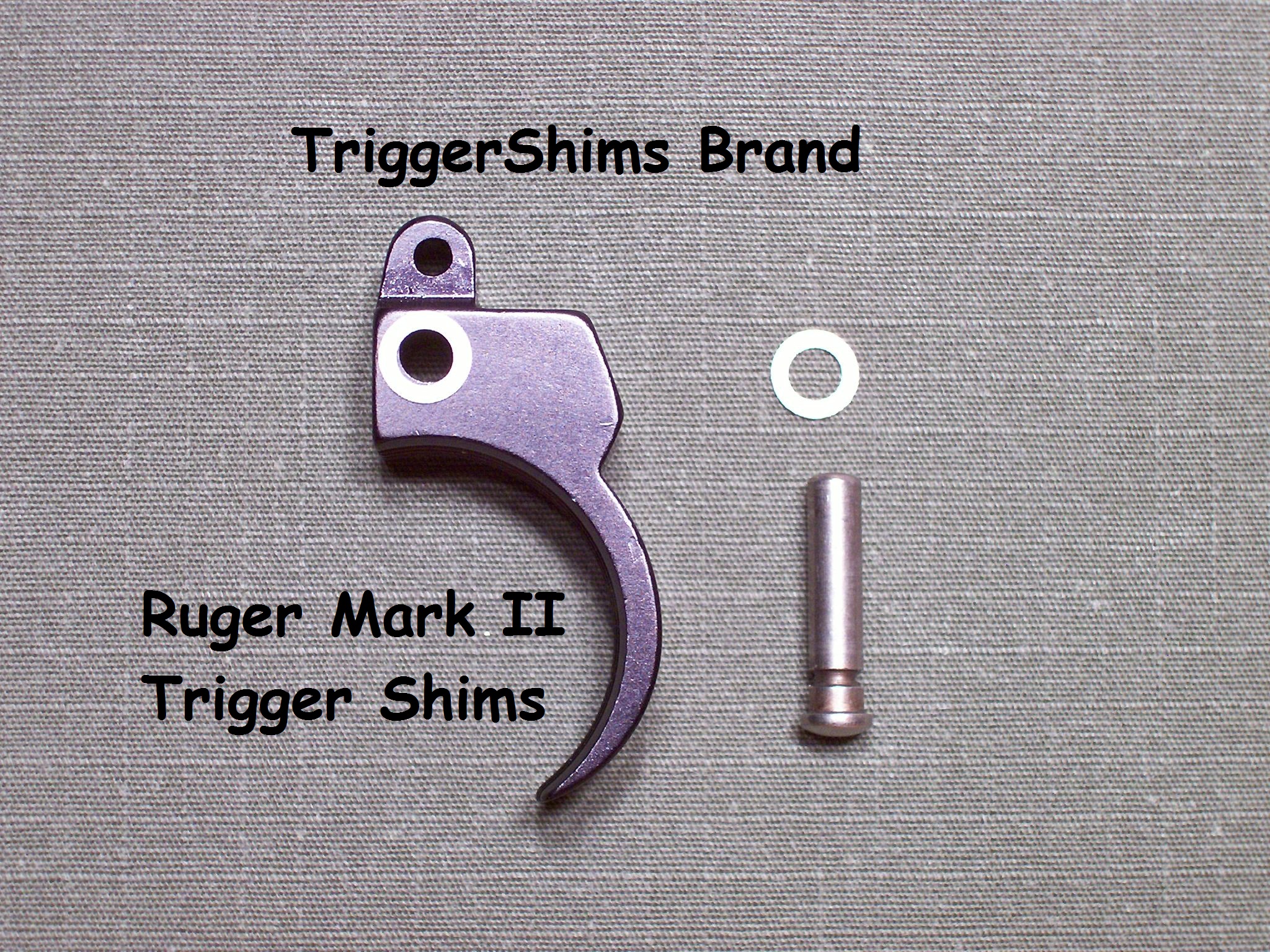

TECH TIP:
Ruger Mark I, II, III, IV & 22/45 Pistol Trigger Shims

Ruger Mark II Trigger Shims

Our Trigger Shims install on the Left Side of the Trigger, between the Trigger and the #AN37 Bolt Stop Assembly.
Our Shims work with both Mark II, Mark III, Mark IV and 22/45

Installing a Shim here will stop the Trigger from Rubbing the Frame on the Left Side, a Common Problem with this Gun.
The left side can have shims installed / stacked until the Trigger no longer contacts the Frame on the left side of the Trigger, and can take anywhere from a few to several thicker shims

Click on Photo to Enlarge in a New Window


BOX VC3FB

VC3FB Magazine Follower Button

fits MKI, MKII, MKIII, MK IV, and 22/45

VC3FB

Have a sluggish MKII, MKIII, MK IV, or 22/45 Ruger magazine? Chances are the spring is fine but the actual culprit is the metal on metal contact of the magazine button.

VC3FB

Not only does this make magazines hard to load but it can also cause feeding problems by allowing the round to hang up before the bolt closes. If your magazine has a gritty and rough feeling when loading, I suggest using Volquartsens Magazine Follower Button for incredibly smooth operation. The button is knurled for easy gripping but more importantly, it eliminates the metal on metal contact providing easy loading and trouble free feeding

Specs:

  • Case hardened
  • CNC-machined
  • Made in the USA

TIP; I have these on my Mark II and 22/45 Mags and they are a game changer, seriously try a set you won't be sorry, Guaranteed or Your Money Back!

Volquartsen VC3FB ~ 2Pak......$12.95 Free Shipping with Tracking ~ USA Only ~ No Exports


BOX 15

Ruger Mark and 22/45 Pistol Gunsprings


RUGER MARK I, II, III AND 22/45 SERIES .22 CALIBER PERFORMANCE PAK

Wolff 30380

Contains: 1 each extra power recoil spring, firing pin spring, reduced power hammer spring and a reduced power trigger spring for improved performance.

Stock No. 30380.....$ 18.95

Wolff 30380 $18.95 ... Free USA Shipping/Tracking ~
No Exports on this item


RUGER MARK I, II, III AND 22/45 SERIES .22 CALIBER REDUCED POWER TRIGGER SPRING

Contains: 1 Reduced Power Trigger Spring

Stock No. 30385

Wolff 30385......$9.95....... Free USA Shipping ~
No Exports on this item


Ruger Mark I II III and 22/45

Extra Power Firing Pin Rebound Spring

Wolff 89897 Extra Power Firing Pin Rebound Spring Power can be replaced by removing the firing pin.
(sits below firing pin in bolt assembly)

Use in Place of Ruger Manufacturer Part # A20000 Old Style - Tapered End
Also replaces Ruger Manufacturer Part # MA12100 New Style
Common Part with 10/22 Rifle

This spring is NOT included in any other Spring Pak.

Stock No 89897

Wolff 89897......$9.95....... Free USA Shipping ~
No Exports on this item


Testimonial on 30380 Kit:
Lance,
I just wanted to drop a quick note to thank you for this kit. I installed this kit in my Old Ruger Standard Pistol ( 1958, not mark I ) and it transformed it from a plinker, to a full blown target shooter, capable of 1/2" 3 shot groups at 30 yards. People don't believe it until they see it shoot. Amazing kit and very little gunsmithing to make it work perfect. Whole job took about an hour with a little file work Thanks to you, this thing is a tack driver!....Literally! I was told by my buddy's it was just a fluke! No way! Great kit!
Thanks Very Much - Dave S.

RUGER MARK I, II, III AND 22/45 SERIES
.22 Caliber Extractor Plunger

Mark II Extractor Plunger

Contains: 1 Extractor Plunger, a common easy to loose part
May have to be shortened slightly for Mark I
Stock No. A02510.....

OUT OF STOCK


BOX~VC10EE

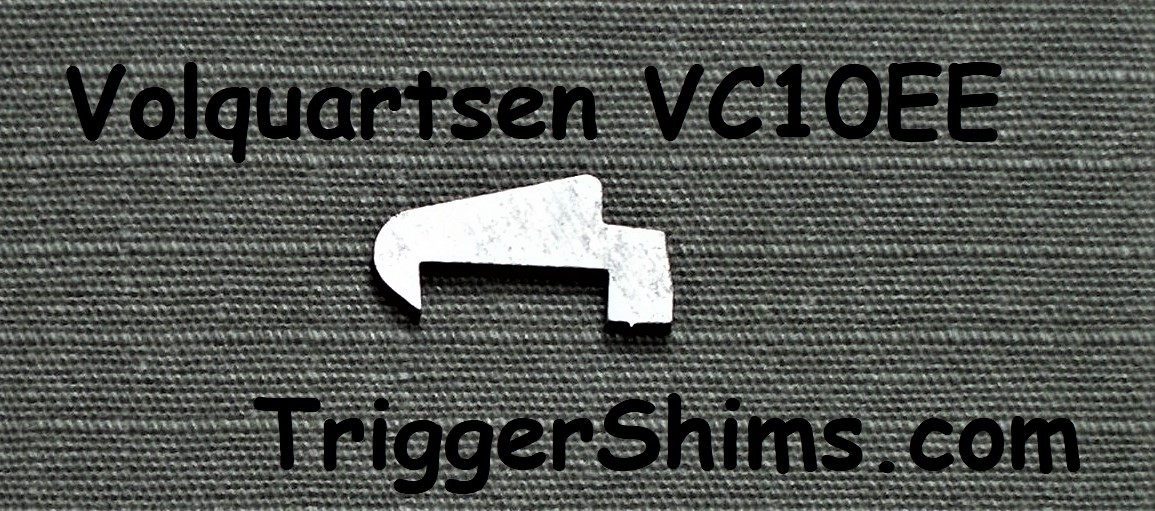

Volquartsen Exact Edge Extractor ~ VC10EE

VC10EE Fits ~ 10/22, T/CR22, 22/45 and Mark Pistols

VC10EE

Manufactured through an EDM Process
to Produce Exacting Tolerances
Made of A2 Tool Steel Hardened to Rc 58-60
The Hook is .005" Closer to the Rim of the Cartridge to Allow for the Most Positive Extraction Available!
Will Not Lose It's Edge Under Impact
Solves Jamming and Stove Pipe Issues
Another Must-Have for 10/22, 22/45 and MkI MkII MkIII Owners!
Also Fits ~ Thompson/Center T/CR22

NOTE: Extractor Spring No Longer Included

#VC10EE  $19.95 FREE USA ONLY Shipping


BOX VC3FE

RUGER MARK I, II, III IV AND 22/45 SERIES

Bolt Tune-Up Kit for MKI, MKII, MKIII, MK IV, and 22/45

.22 Caliber Firing Pin and Extractor Combo Fits Ruger MKI, MKII, MKIII, MK IV including 22/45. Firing pin sold with extractor

Firing Pin
•EDM machined from A2 tool steel
•Minimizes/eliminates light hits
•Firing pin strike face is surface ground
•Firing pin is .004" wider than factory pin, new width helps eliminate side-to-side movement
•Hardened to RC56-58 to prevent deformation
Extractor
•EDM machined from A2 tool steel
•Allows for exact tolerances
•Will not lose edge under impact
•Precise hook point is hardened to RC58-60

Stock No. VC3FE....$ 39.75 and Free Shipping USA - No Exports

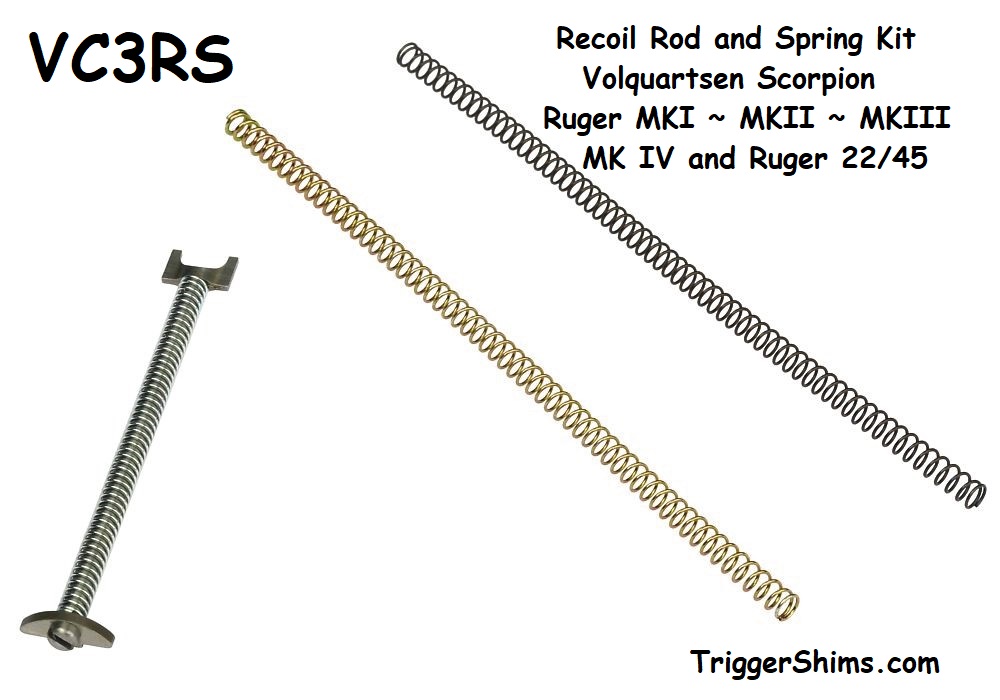

Volquartsen VC3RS Recoil Rod and Spring Kit


fits MKI, MKII, MKIII, MK IV, and 22/45

Volquartsen innovative design makes it quick and easy to match your spring weight to your ammo of choice, greatly improving the performance of your pistol. It is so easy springs can be changed out in under 60 seconds!

VC3rs

Three springs are included in the kit, and are color-coded for easy identification:

  • It ships assembled with our bright-finish, standard rate spring. This configuration is a direct replacement for the Ruger KA-57 recoil assembly.
  • A gold, heavy weight spring, for high velocity ammo.
  • A dark-coated, reduced-power spring. This spring can be used for a softer recoil with standard velocity ammo. It can also be used with most subsonic ammo, but does not enable the use of 22 short or CCI Quiet ammo.

The standard rate spring is suitable for subsonic, standard and high velocity however you will see your best results using specific spring weights.

Specs:

  • Recoil spring assembly is designed for a variety of pistols:
    the Volquartsen Scorpion, Ruger MKI, MKII, MKIII, MK IV, and the Ruger 22/45
  • Product Number: VC3RS
  • UPC: 810162014377
  • Made in the USA

Volquartsen VC3RS......Order Direct from Volquartsen
Click Here ~ Recoil Rod and Spring Kit for MKII, MKIII, MK IV, and 22/45


Finally, a solution to easily reassemble Mainspring Assembly into Ruger MK pistols
The One-Time Fix - Reassembly Aid (patented) Veteran Owned and Operated. Made in USA. Click Here ~ Hammer Strut Support(R) for Ruger MK


BOX GGCG22P

Ruger Complete Gun Guide .22 Automatic Pistols 1947 ~ 2004

The COMPLETE Gun-Guide® for RUGER® .22 Automatic Pistols

Ruger .22 Automatic Pistols I II

RUGER .22 Automatic Pistols 1947 ~ 2004
For your Ruger Standard, Mark I, Mark II, 22/45, Competition, Government, Slab-sides and all special models prior to the release of the new Mark III series introduced in 2005
FEATURES:
The only CURRENT printed manual that includes information on ALL models from 1947 ~ 2004 (Mark I, Mark II, 22/45, etc.)
Easy to use -- lies open and flat on your work surface
56 pages - 55 high-resolution grayscale images
Includes "rare" complete serial numbers and manufacturing dates from 1949 ~ 2004
Printed in the USA with card stock cover and bright white paper.
UPC: 827624391273

The Complete Gun Guide ~ Ruger .22 Automatic Pistols 1947 ~ 2004

Item # GG-CG22P.....$12.75 + $2.75 S&H ~ Includes Tracking


BOX DRMARKIII

Ruger Mark III Disassembly and Reassembly Guide

The Disassembly and Reassembly Guide for the Mark III Pistols

Ruger Mark III Pistols

Ruger Mark III Series 22 Pistols
Standard, Target, Government Target,
Competition, Hunter and 22/45 Models.

FEATURES:
• The only current printed manual that includes information on ALL models.
• Specific disassembly and reassembley instructions for the differences between the Standard and 22/45 models.
• Easy to use -- Comb binding lies open and flat on your work surface.
• 19 pages & 36 high-resolution grayscale images.
• Cardstock cover. Bright white paper
•UPC:400100347218

The Disassembly and Reassembly Guide ~ Ruger Mark III Pistols

Item # GG-DRMarkIII.....$8.75 + $2.75 S&H ~ Includes Tracking


BOX MKIV

Ruger Mark IV Disassembly and Reassembly Guide

Ruger Mark IV

The Disassembly & Reassembly Guide for the Ruger Mark IV

FEATURES:
•The only current printed manual that includes information on ALL models.
•Easy to use -- Comb binding lies open and flat on your work surface.
•26 pages & 69 + high-resolution grayscale images.
•Printed in the USA with card stock cover and bright white paper
•Standard, Target, Hunter, Competition, Tactical, and all 22/45 models.
•Includes Exploded view and numbered list of all 74 parts for the RUGER, Mark IV and 22/45TM models.
•27 Must-have upgrades and accessories
•UPC: 689727599785

The Disassembly and Reassembly Guide for Ruger Mark IV

Item # GG-DRMK-IV.....$8.75 + $2.75 S&H ~ Includes Tracking


Wolf High-Performance Target Loads

Click to go to Brownells Wolff .22 LR Ammo

This is the ammo I use and recommend.
Five round groups in one ragged hole are possible with this ammo at 50 yards benchrest, as I have done it.
It may not be as consistent as the $15 a box stuff, but it fits my pocketbook when I want to make holes in paper!
Wolf 22 LR target ammunition is loaded with VihtaVuori powder prized by centerfire benchrest shooters for its consistent burn rates. The high-quality brass is formed using a proprietary manufacturing technique that maintains outstanding round-to-round consistency to help deliver consistent pressures and superb accuracy.
This ammo is sold and shipped through Brownell's - click the picture to go to Brownell's Wolff Ammo Page.
