PAGE INDEX
Charter Arms Revolvers
Shims and Parts
Charter Arms Index - V1
Charter Arms Page Index
~ Quick Links to Items on This Page ~
Charter Arms Hammer ShimsCharter Arms Cylinder Shims
Charter Arms Hammer Spring / Shim Kit
TECH TIP: Lance's CA Hammer Shim Video
Businesses We Recommend ~ Links
PAYMENT GUIDE AND INSTRUCTIONS
👉Link To: ADD USPS TRACKING UPGRADE with SHIPPING PROTECTION
God Bless the U.S.A.
American Made Gun Shims
Charter Arms Revolvers
Hammer and Cylinder Shims
Wolff GunSprings
Item # Charter Arms Cylinder Shims
Cylinder / Endshake Shims
Charter Arms Bulldog and Undercover
-NEW- Charter Arms Revolver Cylinder / Endshake Shims
Custom Made for Charter Arms Revolvers ~ All Double Action Models
Fits Between Cylinder Gas Ring and Yoke Installs in the same manner as a Single Action Revolver ~ NOT inside the cylinder like a S&W J Frame
Made from USA
Full Temper 300 Series Stainless Steel
Available in 002" Through .006" Stock
Nominal O.D. of .345" X I.D. of .299"
Thanks to David in NC!
Our Standard Cylinder Shim Pak Assortments are as follows;
2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
50 Pak Your Assortment
-OR- Choose ANY Pak and Specify Your Requested Thickness in Comment Box
Free Economy Shipping ~ Mail
-ORDERING INSTRUCTIONS-
- Box 1 ~ Click Down V to Choose ANY Pak Quantity for Best Pricing
- Box 2 ~ Click Down V to Choose Our Regular Assortment OR Your Assortment Choice
- Box 3 ~ for Listing Your Special Request of Thickness
Read Lance's in-depth article about Installing Cylinder Shims in a Charter Arms Bulldog Here:
Click Here to Open Printable PDF
BOX CA~Yoke Screw Washer
Yoke Screw Washer for Charter Arms Bulldog and Undercover - Coming Soon
.146 x .189 Charter Arms Yoke Screw Washer
Hello Lance,
I received the cylinder shims and tried them out today. Had about 0.008" worth of cylinder play in a new Charter Arms revolver. While rotating, the cylinder would scrub the barrel and lock everything up. The installed shims turned this 3 shot revolver into the 5 shot it's supposed to be.
Thank you for your product, Mike
Item # Charter Arms Hammer Shims

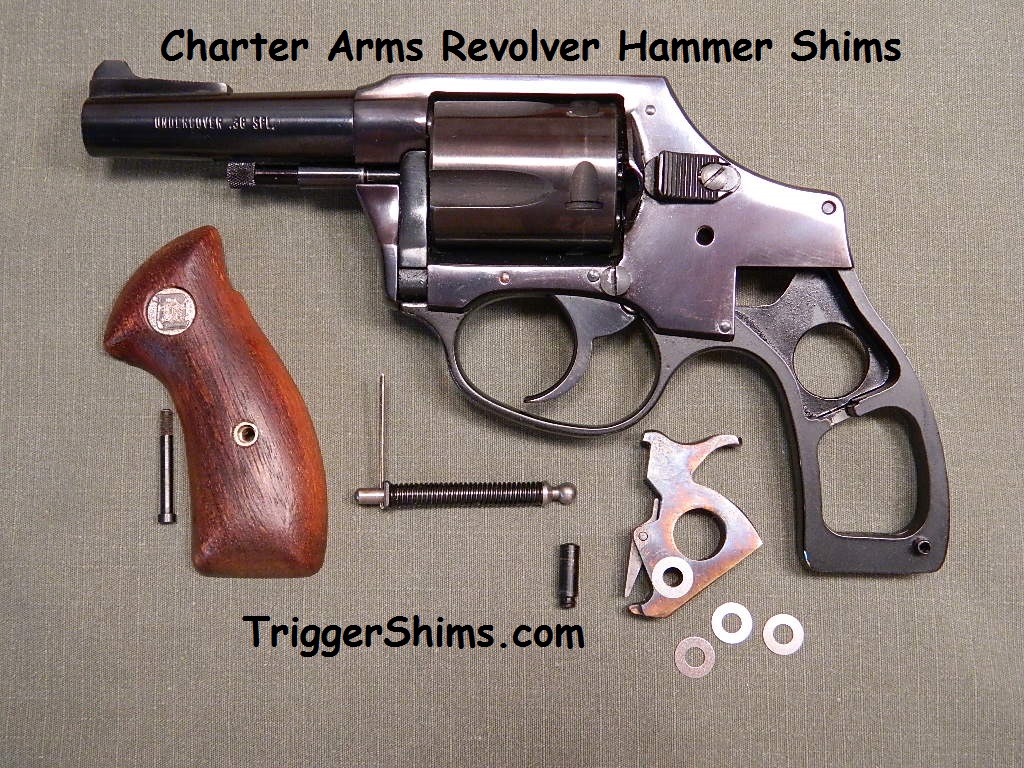

Hammer Shims for Charter Arms Bulldog and Undercover
Hammer Shims for Charter Arms Bulldog and Undercover
Hammer Shims for Charter Arms Bulldog and Undercover End the Hammer to Frame Rub in these models and similiar revolvers
Also Fits These Models; Bulldog® .44 Special, PROFESSIONAL .32 Magnum, Mag Pug® .357 Magnum, Pit Bull® .40 S&W, .380, 9mm.
(Shim Size .175" X .345")
If you have questions on fit, check your Hammer Pin Diameter, it should be around .172" Plus/Minus
Our Standard Hammer Shim Pak Assortments are as follows;
2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
50 Pak Your Assortment
-OR- Choose ANY Pak and Specify Your Requested Thickness in Comment Box
Free Economy Shipping ~ Mail
-ORDERING INSTRUCTIONS-
- Box 1 ~ Click Down V to Choose ANY Pak Quantity for Best Pricing
- Box 2 ~ Click Down V to Choose Our Regular Assortment OR Your Assortment Choice
- Box 3 ~ for Listing Your Special Request of Thickness
Your hammer shims appear to have fixed my Charter Arms Undercover misfire issues. I think the hammer rubbing the frame and once in a while contacting right before firing pin strike was causing the issues. I bought the (Wolff) extra power spring as well but tried the shims first. No misfires in 50 rds ~ Jason
Item # TECH TIP: Lance's CA Hammer Shim Video
TECH TIP VIDEO:
Charter Arms Revolver Hammer Shims
for Undercover and Bulldog
Item # Charter Arms Hammer Spring / Shim Kit
BOX~17511 REV5/26
Charter Arms .44 BULLDOG Hammer Spring and Hammer 6 Pak Shim Combo Kits
RP and XP Hammer Springs come with 6 Pak Hammer Shims
NOTE: CA Reproduction Hammer Spring Listed at NumRich to Also Fit Models: MAG PUG, OFF DUTY, PATHFINDER, POLICE UNDERCOVER and UNDERCOVER - Wolff does not cross this spring - Buy at Your Own Risk for These Models
Listed by Wolff to Only Fit BulldogShould Also Fits These Large Frame Models; Bulldog® .44 Special, PROFESSIONAL .32 Magnum, Mag Pug® .357 Magnum, Pit Bull® .40 S&W, .380, 9mm.
See My Cross Reference Below
Notes:
16701 XP
.214 - OD
.035 Wire
25.5 Turns
2.120 OAL
Calculated Solid Length - 0.892"
17511 RP
.216 - OD
.028 Wire
31 Turns
2.625 OAL
Calculated Solid Length - 0.868"
Charter Arms Hammer Spring + 6-Pack of TriggerShims Hammer Shims
This popular combo includes one genuine Wolf Gunsprings Hammer Spring specifically made for Charter Arms revolvers, plus a full 6-pack of our precision TriggerShims hammer shims.
Why we sell them together: These two parts work hand-in-hand. Most customers who replace the hammer spring also need to tune the hammer fall with shims. This combo gives you everything you need in one convenient package.
Note: We no longer sell the Charter Arms hammer spring by itself.
Choose Wolff 17511 Reduced Power
~or~
Wolff 16701 Extra Power Hammer Spring
Reduced Power Spring will help Reduce Trigger Pull
XP Spring for Light Strikes
Use Drop-Down Box to Choose RP or XP
Price Includes Standard 6 Pak Hammer Shims
Price Includes Free USA Shipping
I used your hammer shims and how-to video to fix a DA light strike problem in my new Charter Bulldog. Success! Great service and products. Thanks - Frank in VA
Lance, I installed the shims in my Charter Arms Bulldog and the reduced power main spring, what a difference. It removed the gritty feeling and reduced the force needed to pull the trigger. It made the gun more pleasant to shoot. Thank you, David in WA
Charter Arms Undercover Factory Spring Measurement
Hammer Spring:
Overall Length - 2.060"
Number of Soils - 31
Wire Size - 0.032"
Spring ID - 0.141"
Spring OD - 0.205"
Calculated Solid Length - 0.992"
Charter Arms Universal Hammer Spring Cross-Reference
This chart cross-references standard hammer spring (Mainspring) compatibility across Charter Arms small and large frame revolvers, including the Bulldog, Mag Pug, Off Duty, Pathfinder, Police Undercover, Undercover, Professional, and Pit Bull models.
| Source / Brand | Part / SKU Number | Listed Primary Application | Hidden Cross-Compatibility & Fitment Notes |
|---|---|---|---|
| Numrich (Factory New) | Product #323160 | Universal Mainspring | Factory original replacement. Fits all standard 5 & 6 shot models across all eras. |
| Numrich (Heavy Blue) | Product #1741160 | Custom Heavy Weight | Excellent cross-match for target models or heavy rimfire ignition demands. |
| Numrich (Medium Yellow) | Product #1741170 | Standard Weight | Universal fit. Direct replacement for both small and large frame centerfire models. |
| Numrich (Light Red) | Product #1741110 | Reduced Power | Target use only. Higher risk of light primer strikes on small centerfire frames. |
| Wolff Gunsprings | SKU: 17511 (Reduced) | Bulldog .44 Special | Physically fits all models; dimensionally optimized and tested primarily for large frames. |
| Wolff Gunsprings | SKU: 16701 (Extra) | Bulldog .44 Special | Physically fits all; provides an excellent heavy-ignition alternative for modern 8-shot Pathfinders. |
Critical Technical & Fitment Notes
- Inter-Generation Frame Differences (Bridgeport vs. Charco vs. Charter 2000): Modern universal replacement springs are backward-compatible, but older 1st Generation (Bridgeport/Stratford) and 2nd Generation (Charco) revolvers occasionally feature tighter coil-wind tolerances. Vintage springs may bind on thicker, modern 3rd Generation (Shelton, CT) hammer struts.
- High-Capacity Rimfire Ignition Warning (.22 LR / .22 Mag): While this spring structurally fits the Pathfinder line, vintage 6-shot Pathfinders accept standard centerfire weights readily. Modern 8-shot Pathfinder (.22 LR) and Target Pathfinder (.22 Mag) cylinders require a significantly higher spring rate to reliably detonate tough rimfire rims. Dropping a standard centerfire "Bulldog" weight or reduced-power spring into an 8-shot rimfire will frequently cause ignition failures.
- Frame Mechanics & Strut Compression: Though the physical spring length and coil counts are identical across small frames (e.g., Undercover, Off Duty) and large frames (e.g., Bulldog, Pit Bull, Mag Pug), the hammer spur geometry differs. Small-frame hammers create a shorter overall compression stroke. As a result, the exact same spring will exert slightly less resting and peak seat pressure when installed in a small-frame model compared to a large-frame model.
“It's easier to fool people than to convince them that they have been fooled” ~ Mark Twain
v.1t Item # FG161D
TECH TOOL TIP: USA Feeler Gauge
The easiest way to Measure your Trigger or Hammer assembly or your Cylinder Endshake is with a simple blade type feeler gauge.
I sell a Nice U.S.A. Made set you can include in your orders.
It comes with a Manufacturers Lifetime Warranty
This 32 Blade Gauge will measure from .0015" up and is perfect for general use.
The price is $18.95 and includes Free First Class Shipping and Tracking USA
Price includes Free Shipping and Tracking in USA Only ~ Sorry No Exports ~
"Among the natural rights of the colonists are these: First a right to life, secondly to liberty, and thirdly to property; together with the right to defend them in the best manner they can."
~ Samuel Adams
#SHIP-V2.2
UPGRADE FROM FREE ECONOMY SHIPPING ~to~ TRACKING w/ SHIPPING PROTECTION #ESU
~ USA ONLY ~
~ $6.00 Tracking UPGRADE ~
NOW Includes
~ SHIPPING PROTECTION* ~
~ USA ONLY ~
Upgrade from FREE ECONOMY MAIL to
Bubble Pak w/ Tracking
(USA Only) Orders - Add TRACKING $6.00
NOTE: Free Shipping Shim orders DO NOT include Tracking!
Shims are sent via White Envelope Snail Mail - Ground - No Insurance
If you want Tracking Upgrade, this is the place.
~Click the ADD TO CART button below ANYTIME BEFORE WE SHIP ~
Tracking and Replacement for Items Lost or Damaged During Shipping
Please Do Not Duplicate Your Order to Add This Upgrade
Continental USA, AK & HI ONLY
* USPS Ground Advantage™ Service
* Replacement for items lost or damaged during shipping
We Cheerfully accept Cash, Money Order, and Credit Cards through our Secure PayPal Check-Out
All Website Orders are Shipped the Next Business Day
I will Ship Shims to USA, Canada and International
Gun Parts Shipped to USA Only
