I have used a recoil buffer for years, and I can say this is one upgrade you should not be without. Tuffer Buffer brand Recoil Buffers are made in Canada, and were designed specifically for the Ruger 10/22 and 10/22 Magnum. Tuffer Buffer replaces the Bolt Stop Pin (B46 on Ruger schematic) When the gun is fired, the bolt moves rearward and contacts the bolt stop pin. By replacing the factory steel stop pin with a Polyurethane Tuffer Buffer, the bolt stop impact is significantly reduced resulting in less noise but more importantly far less strain on the receiver and bolt due to metal to metal contact.
Read this customers comments;
Super Quiet Action, No More Clanging! Awesome Seller and Super Fast Shipper -- Ty
10/22 Recoil Buffer Installation Video
Ruger 10/22 Receiver and Trigger Housing

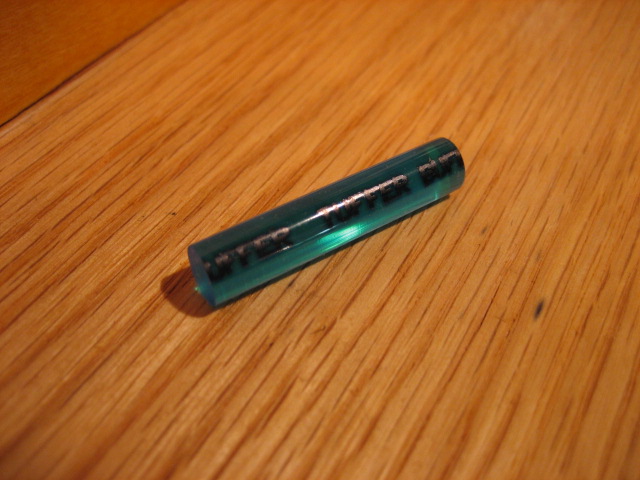

The Tuffer Buffer brand Recoil Buffer
10/22 Recoil Buffer Installation Instructions.
Make Sure Gun is Unloaded!
Remove magazine, open bolt and make certain there is not a cartridge in the chamber.
Allow the bolt to close. Familiarize yourself with the disassembly instructions and parts list in your Ruger Owner Manual.
Loosen the Barrel Band Screw (B-69) and remove the Barrel Band (B-68)
Loosen, but do not remove the Take Down Screw (B-65)
Position the safety so an equal amount of the button is exposed on each side. If the safety is not in the middle when the barrel-receiver assembly is lifted out of the stock, the stock will be damaged.
Swing the barrel-receiver assembly upward away from the forearm of the stock.
Be careful the two Receiver Cross Pins (B-5) and Bolt Stop Pin (B-46) do not fall out.
Remove the trigger assembly by drifting out the two Receiver Cross Pins (B-5)
(see figure 1)

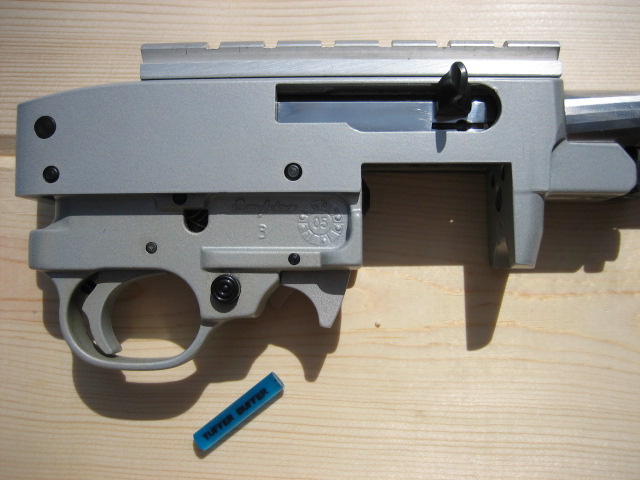

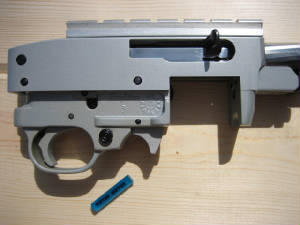

Removing Trigger Housing from Receiver
Set the trigger assembly aside, and remove the Bolt Stop Pin (B-46) with a drift.

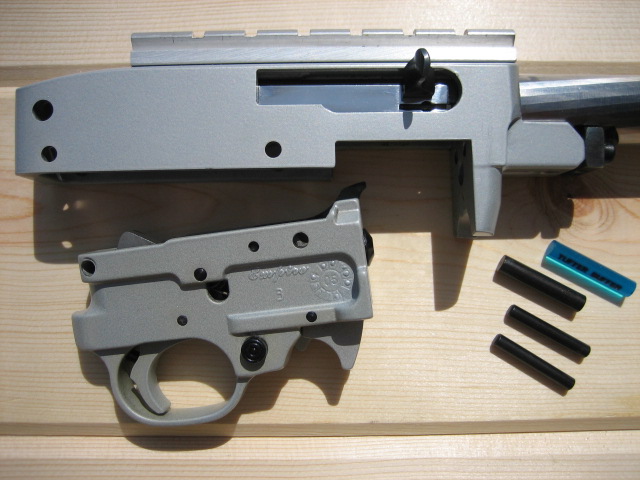

Figure 2 shows the Receiver Cross Pins (B-5) and Bolt Stop Pin (B-46) removed.
Pins removed and ready to install Tuffer Buffer

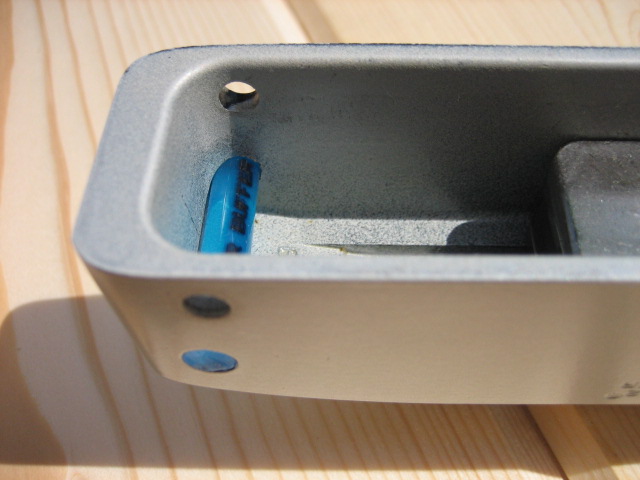

Tuffer Buffer installed in receiver
Figure Three shows the Tuffer Buffer installed.
A drop of oil and a twisting motion helps to install the new buffer.
Install the Trigger Assembly into the Receiver, and reassemble the gun.
