Thompson Center T/CR22® DIY Professional Trigger Job
Volquartsen VC10TH

  • Average 50% Reduction in T/CR22 Trigger Pull - See My Video
  • Reduce your trigger pull from a stock 4.5 to 5 lbs to a Crisp  2 to 2.5 lbs average results
  • Improve Your accuracy
  • Highest Quality American Made A2 Tool Steel Hammer
  • Volquartsen Quality Reputation of almost 50 Years!

BOX~VC10TH

Volquartsen VC10TH Target Hammer

Fits ~ Ruger 10/22 and Thompson Center T/CR22

- The Fastest, Easiest Trigger Pull Improvement you can make!!
- VC10TH - "The Trigger Job in a Bag"

Fits; Ruger 10/22 Long Rifle and 10/22 Magnum ~ also ~ Thompson Center T/CR22

The Target Hammer is an the affordable way to improve the Ruger factory trigger pull and reduce the pull weight to 2.5-2.75 lb
This Kit will Drop in and give 2.5# Trigger Pull in the Thompson Center T/CR22

VC10TH

This is a very popular, fast selling kit, and a MUST HAVE for Serious Shooters!
By Far the Best Bang for Your Buck!

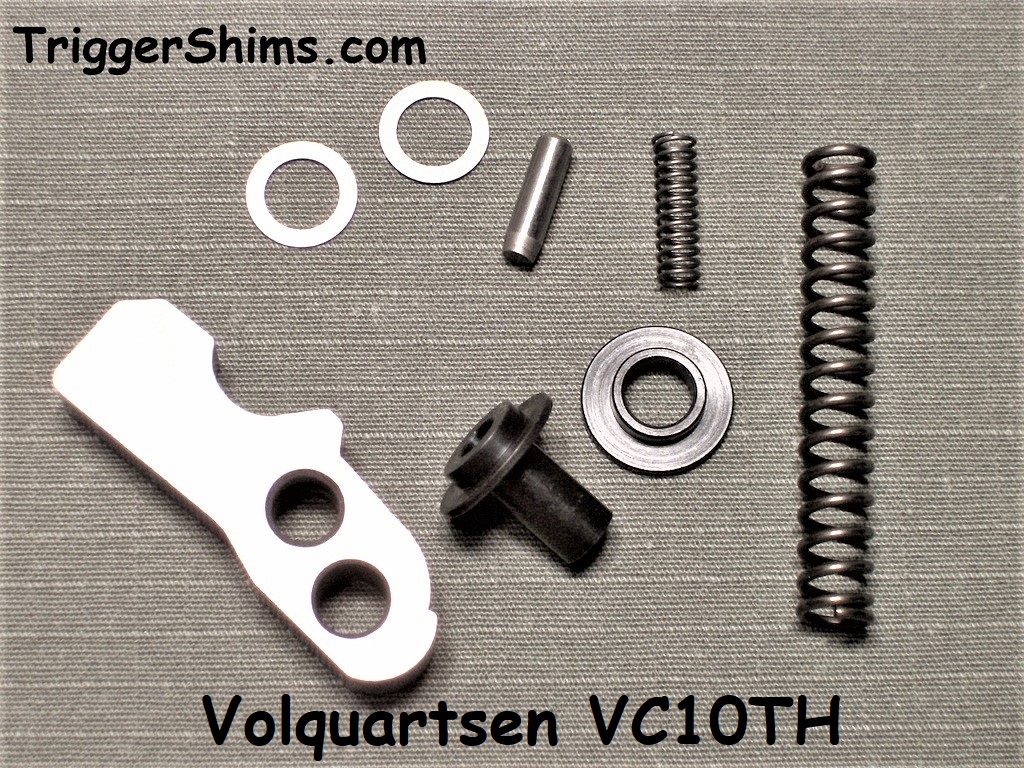

The Volquartsen Kit includes a Target Grade Hammer which will reduce your trigger pull a minimum of 50% to approximately 3 Pounds. Hammer notch is precision surface ground, no stoning or fitting is required.

Includes 2 Volquartsen Hammer Shims, Hammer Spring, Trigger Return Spring and a set of Hammer Bushings which are needed if you are replacing the Hammer in a Plastic Trigger Housing.
Requires disassembly of the trigger assembly for installation.
Brief instructions are included, and complete installation instructions and video are available here on my web site on my Shim Kit Installation Page.

Easy to install, no fitting, stoning, or modifications required.

VC10TH Instructions

Click on Picture to the Right for Printable Instructions

*NOTE on Ruger 10/22 Plastic Trigger Housings;
Due to inconsistancies in the depth of the Trigger Return Plunger Pocket,
some trigger reset problems could occour.
We have found better results with using your Stock Trigger Return Spring on some Plastic Trigger Housings rather than the lighter one that comes in this kit

 Make it a Combo Kit, add an 8 Piece Stainless Shim Kit just $8.00 more
(Save $7.00 if purchased separately!)

~ SPECIAL ADD-ON OFFER ~

Click Down Arrow V to Add an 8 Pcs .006" Shim kit $53.95 ~ FREE Shipping (USA)

#VC10TH Kit ~ America First USA Made ~ $45.95 and FREE Shipping (USA ONLY)

VC10TH KIT: OPTIONS
Special Request Notes Below

NOTE:Will not work with BX Trigger

NOTE: This Kit will Drop in and give 2.5# Trigger Pull in the Thompson Center T/CR22

Link to: VC10TH Installation Instructions at Volquartsen

Lance, Shot the 10/22 with the upgrades. (VC10TH) All I can say is WOW. It shot so well that two of the guys I was with said they were going to buy 10/22s so that they could do the same. One other guy said he was going to do his and asked if I would help. Once again thanks for a great product! ~ Mark in DE

Lance, I received my order of 10/22 Shims and VC10TH. I started with 5 1/2 to 6 lbs. After installing the kit it was consistent at 2 1/4 lbs. What a difference they made! It is finally a joy to plink, and at longer ranges far more accurate. Thanks! I've told all the guys at the club, and showed them the difference, but you can't argue with a trigger scale. Thanks Again! Ted

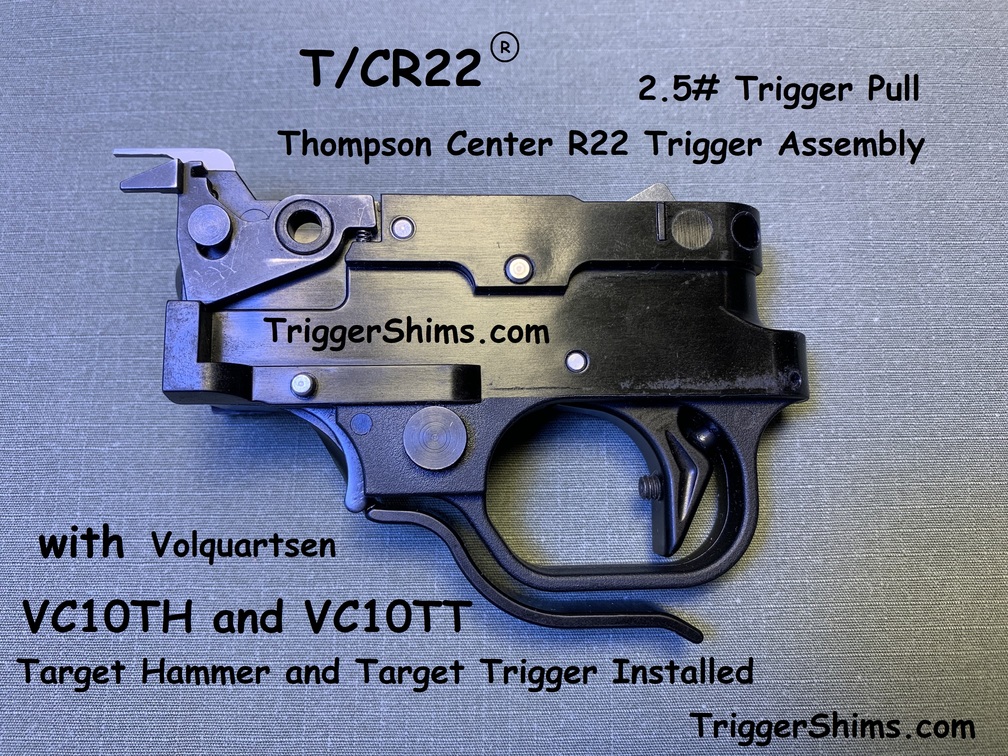

Thompson Center T/CR22® with Our
Volquartsen VC10TH and VC10TT

T/CR22 Trigger Assembly

Here is our VC10TH Target Hammer and VC10TT Target Trigger Installed in a Thompson Center T/CR22

The T/CR22 Trigger and Associated Sear and Disconnector are proprietary in their size, and the Sear and Disconnector cannot be used in a VC10TT Target Trigger

In order to make this modification work, you will need to replace the Sear, and Disconnector, and slightly open up the trigger opening in the housing

I used a stock 10/22 Disconnector and Sear, the only problem being the availability of a stock sear as Ruger will not sell Sears for the 10/22

~ Watch My Video Tech Tip Below ~

To get the parts you need to modify your T/CR22 here is a list ~

Your Sear Choices Are;

  • Power Custom Competition Sear
  • Power Custom Pre-Travel Adjustable Sear
  • Volquartsen Target Sear

and Your Disconnector Choices are;

  • Power Custom Disconnector
  • Volquartsen Disconnector
  • Ruger Stock Disconnector

And you will need the VC10TH and VC10TT available here at TriggerShims.com ~

VC10TH Target Hammer Kit
VC10TT Target Trigger

TC001

TECH TIP VIDEO: Thompson Center T/CR22 Target Hammer Kit Installation Instructions

TriggerShims Logo

T/CR22® 8 PIECE STAINLESS STEEL 1022 SHIM KIT

Our Stainless Steel Ruger 10/22 Trigger Shim Kit includes 8 Stainless Shims and will fit all Thompson Center T/CR22® Rifles

T/CR22 Shim Kit

Shim #1 are 10/22 Outside Hammer Bushing Shims, 2 each in .005" thickness.
Shim #2 are 10/22 Trigger and Sear Shims, 4 each in .005" thickness.
Shim #3 are 10/22 Disconnector Shims, 2 each in .005" thickness.

Our Stainless Shim Kit will stop all side rubbing in the trigger assembly,
and comes with a 100% Satisfaction Guarantee!
" Cheater Pin" and Shis-Ka-Tool included to aid installation, U.S. Orders Only


T/CR22 Use Plastic/Universal

8 Pcs. Stainless Shim Kit $15.00 Free Shipping

For T/C R22 use our ~ 10/22 Universal Style Trigger Housing Shim Kit


BOX~18076

RUGER 10/22 RIFLE TUNE-UP PAK
All Models ~ Reduced Power
*Also Fits Most 10/22 Clones including T/C R22

Wolff 18076

Our Most Popular Pak ~ This pak contains 1 each Extra Power Hammer Spring and 1 each Reduced Power Trigger and Reduced Power Sear Spring to improve let-off.
* does not include recoil spring

This 10/22 Kit gave my T/C R22 a 40% reduction in Trigger Pull

Reducing your Trigger Pull Increases Your Accuracy

  • Reduce your T/C R22 Trigger Pull to Less Than 3 Lbs
  • Wolff Quality Gunsprings - A Name You Can Trust
  • Our TriggerShims 100% Satisfaction Guarantee
  • Made in the USA!
  • Compare Our 3 Spring Set with Other 2 Spring Sets on the Market
  • Wolff Gunsprings = Better Value!!

Wolff Stock No. 18076 $15.95 ... Free USA Shipping/Tracking ~
No Exports on this item

Will Not Work With Ruger BX Trigger



Wolf High-Performance Target Loads

Click to go to Brownells Wolff .22 LR Ammo

This is the ammo I use and recommend.
Five round groups in one ragged hole are possible with this ammo at 50 yards benchrest, as I have done it.
It may not be as consistent as the $15 a box stuff, but it fits my pocketbook when I want to make holes in paper!
Wolf 22 LR target ammunition is loaded with VihtaVuori powder prized by centerfire benchrest shooters for its consistent burn rates. The high-quality brass is formed using a proprietary manufacturing technique that maintains outstanding round-to-round consistency to help deliver consistent pressures and superb accuracy.
This ammo is sold and shipped through Brownell's - click the picture to go to Brownell's Wolff Ammo Page.
